Introduction

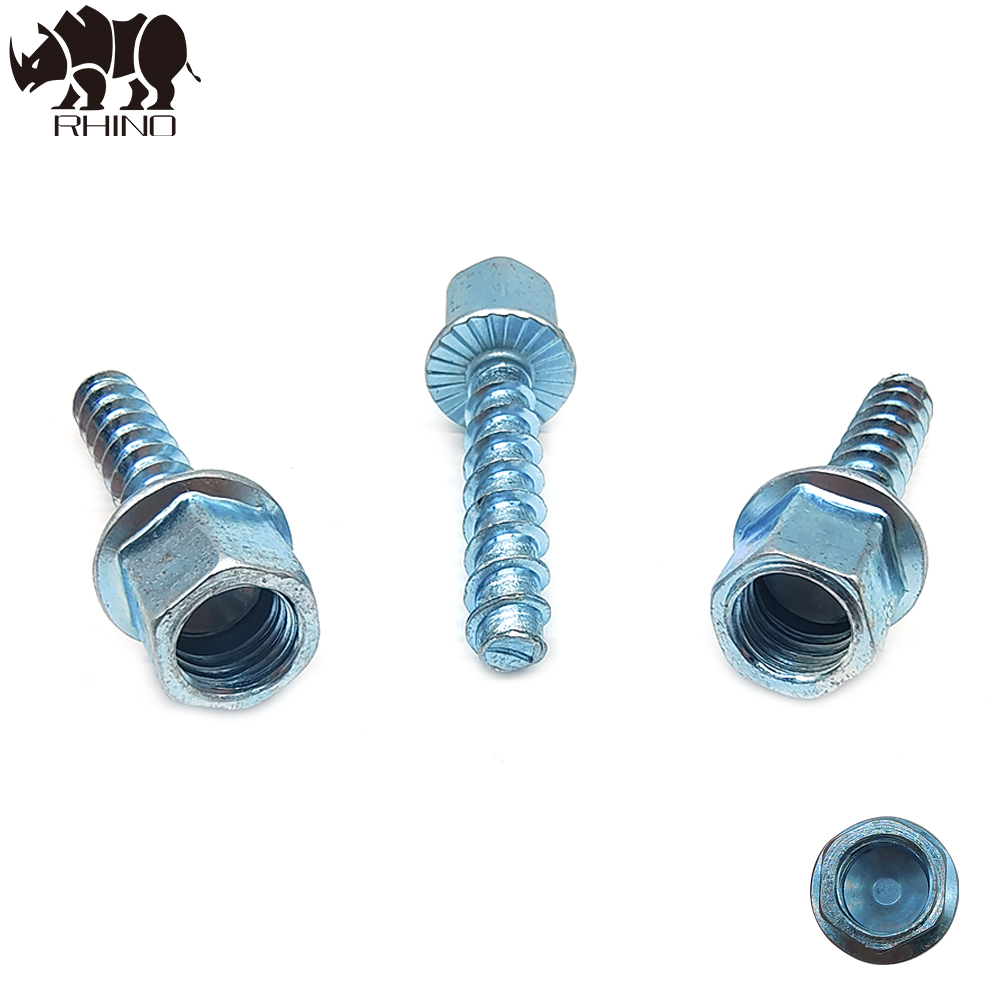

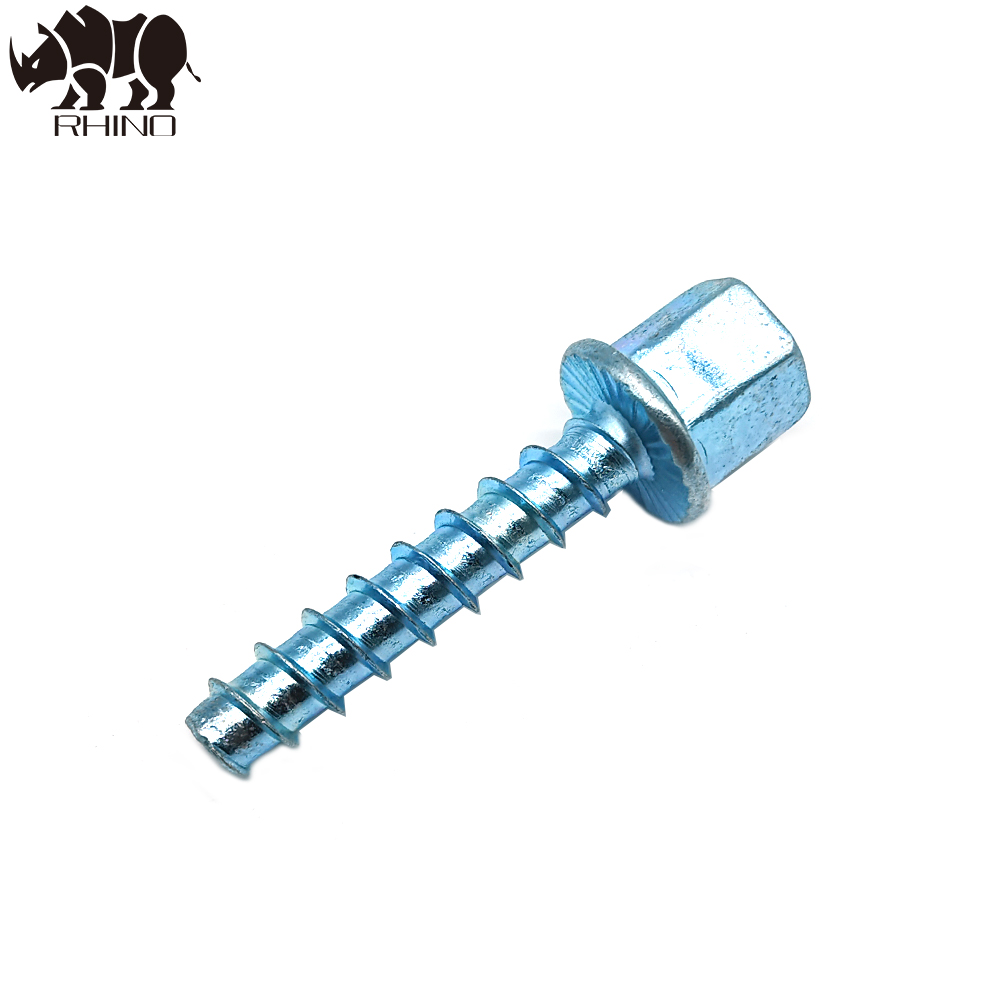

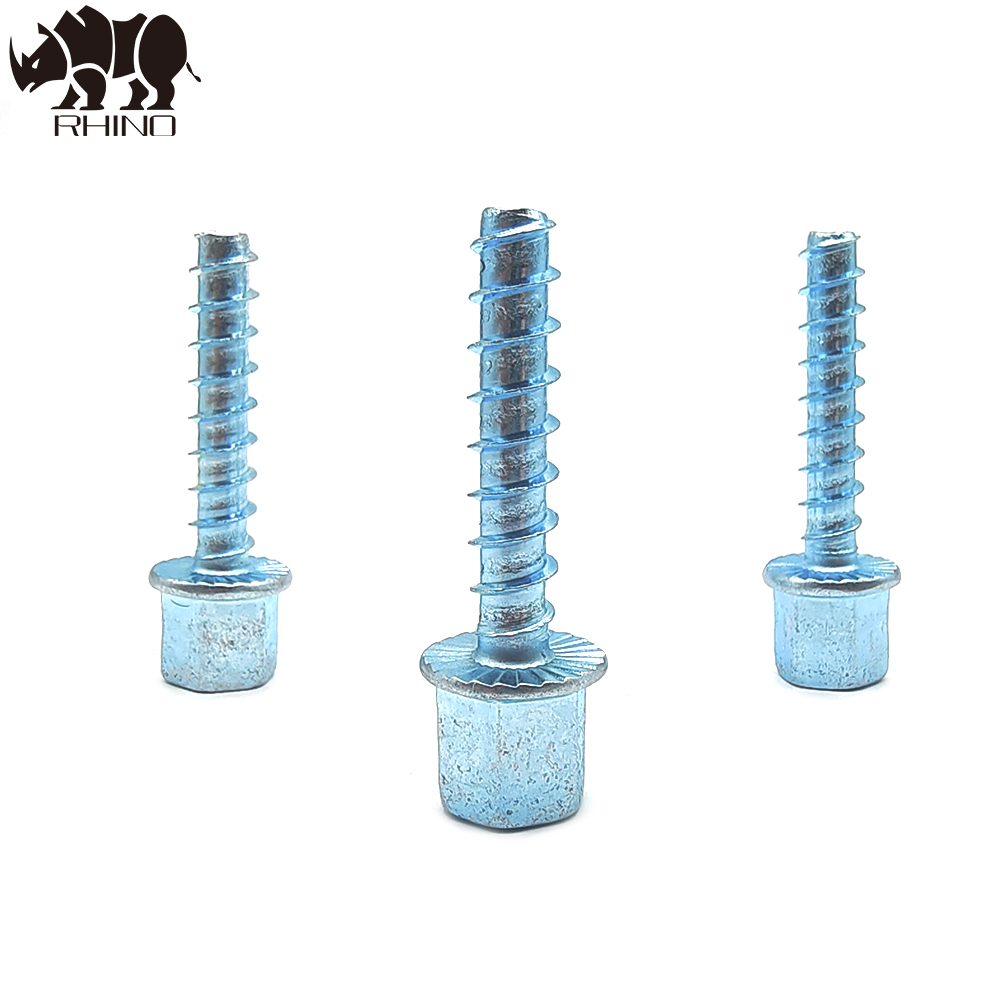

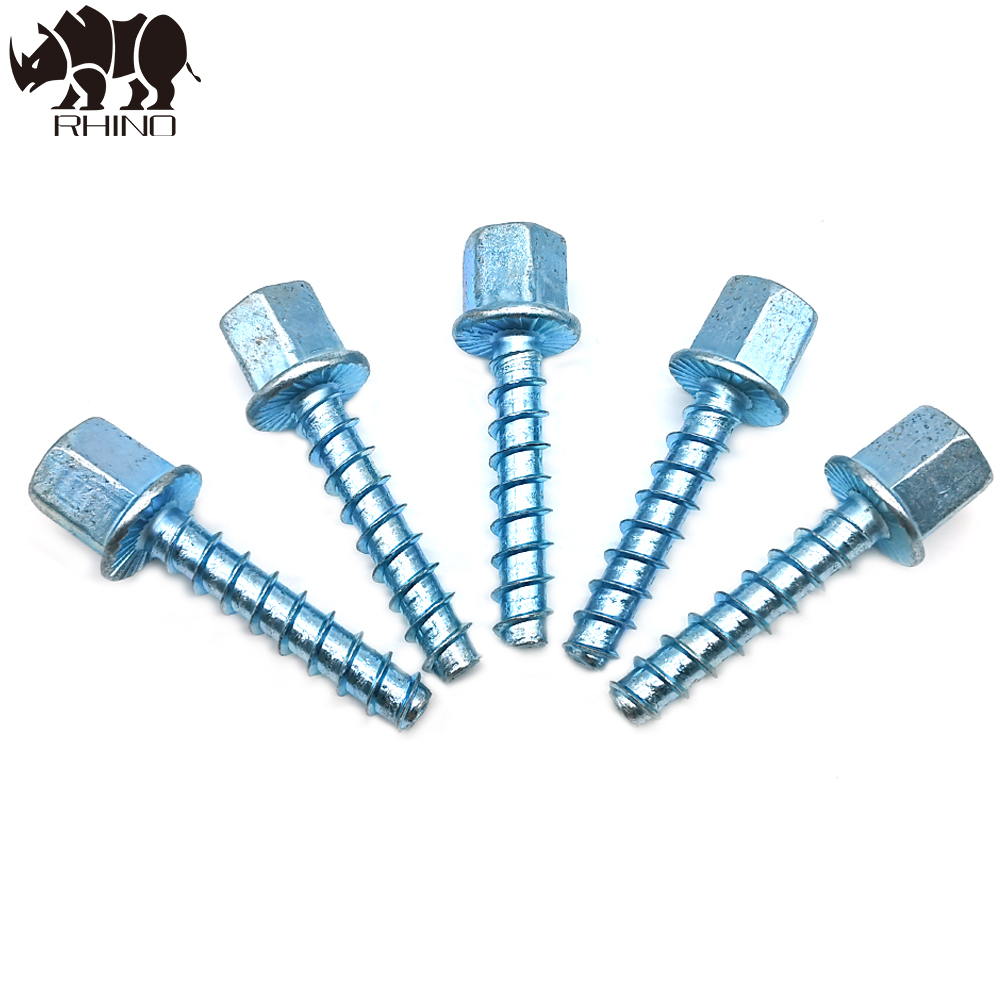

The 1-2x80x50 Hex Head Hex Ceiling Screw is a specific type of hex head cap screw. The "1-2" is its nominal diameter, which could be either 1 inch or 2 inches. The "80x50" indicates the length of the screw. It could be either 80 millimeters or 50 millimeters long. Hex head cap screws are commonly used in various applications, and their dimensions can vary.

Product Data

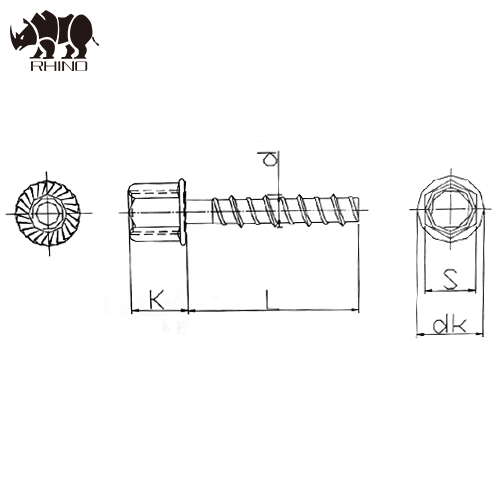

Specification
Drill Hole Diameter (mm) 6
Hole Depth (mm) 50
Overall Length (mm) 75
Embedment Depth (mm) 40
M8 Internal Thread Length (mm) 12
M10 Internal Thread Length (mm) 15
Across Flats (mm) 17
Design Tensile Resistance (kN) 3.3
Recommended Tensile Resistance (kN) 2.3
Tightening Torque (Nm) 25

Applications

Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
