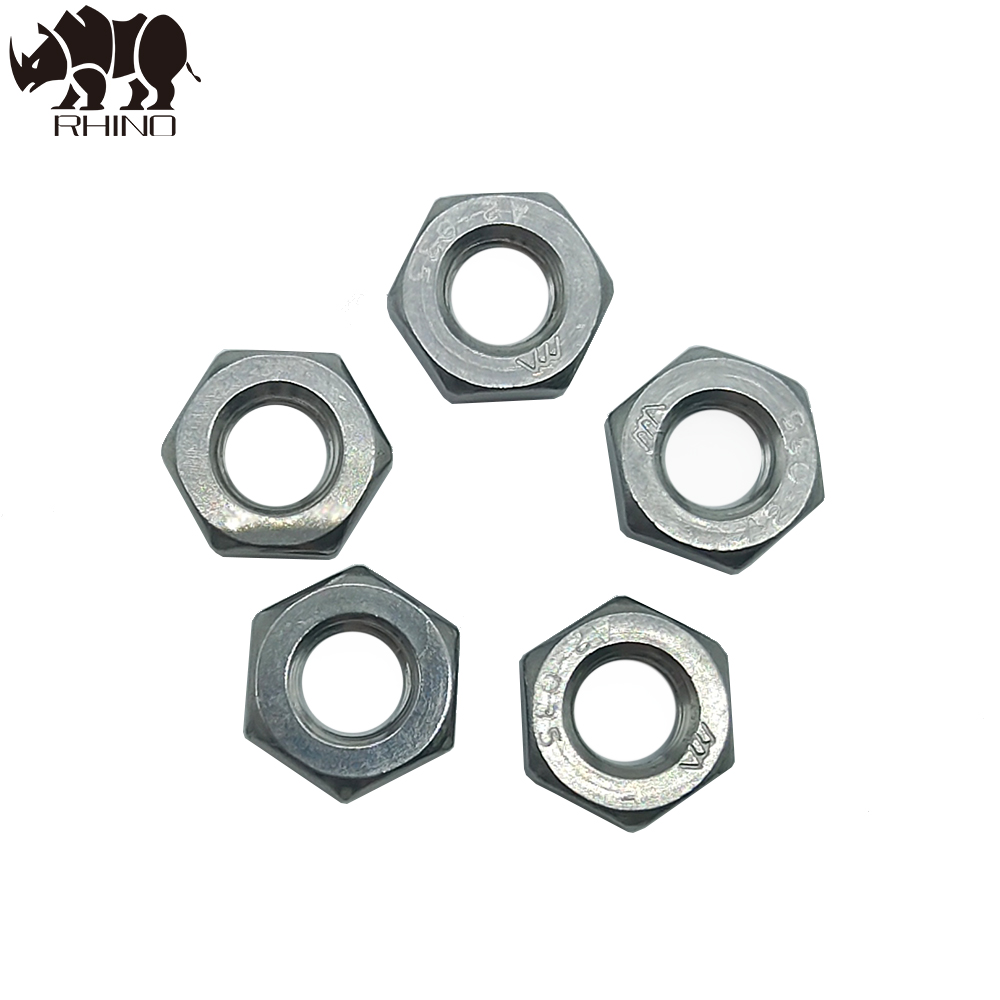

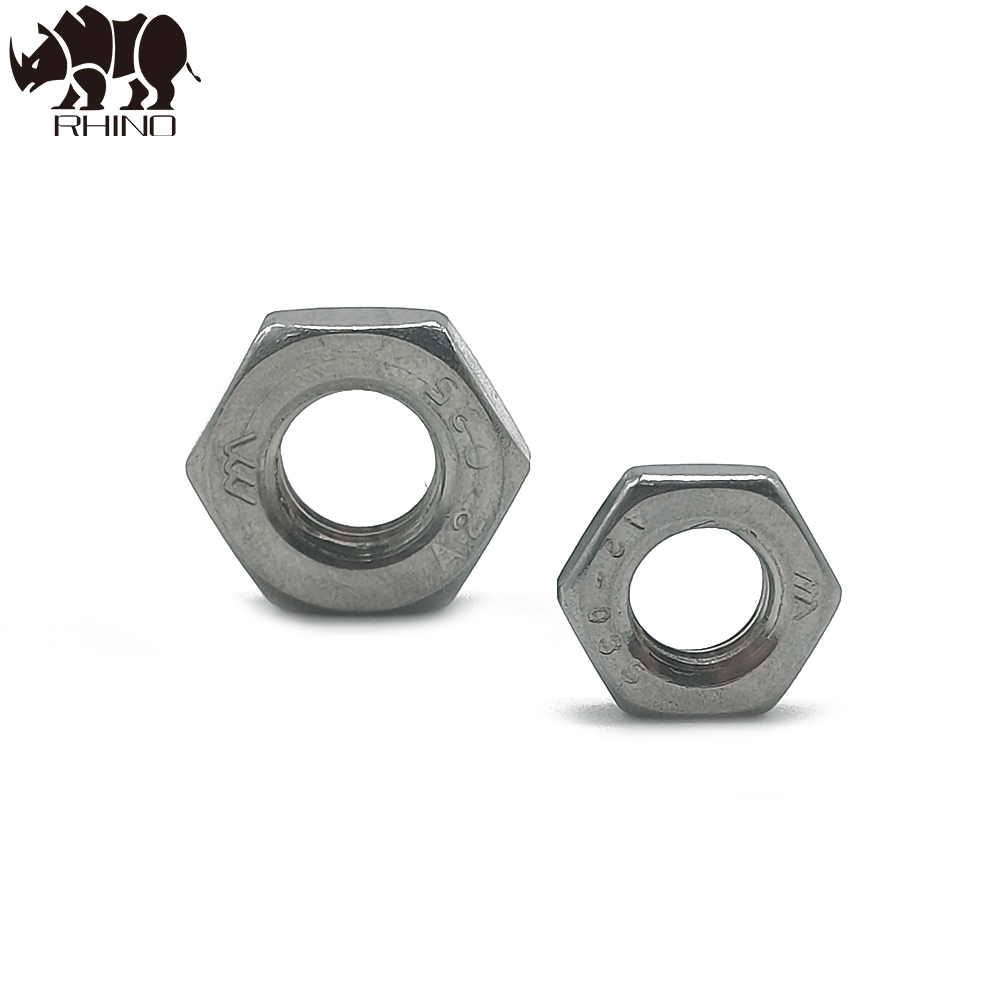

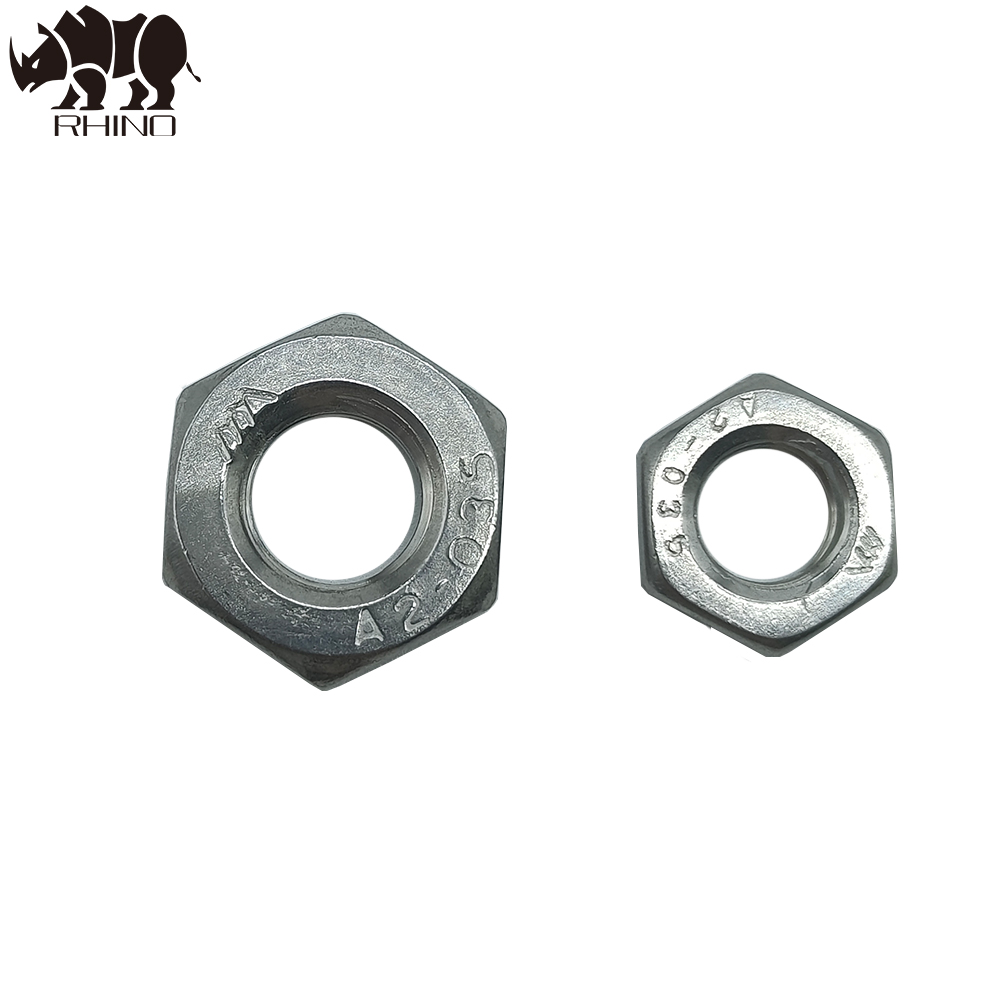

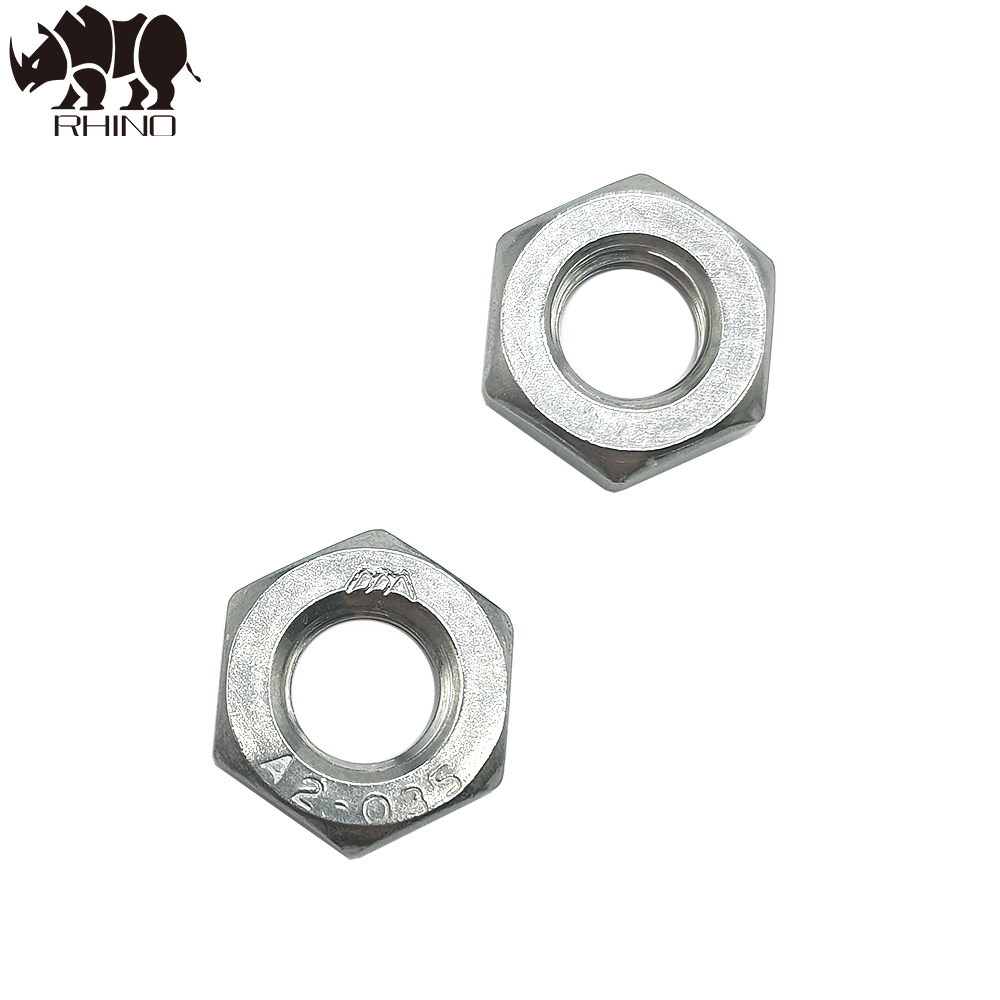

The A2-035 Hex Thin Nut is a thin hexagonal nut made of stainless steel, typically used in applications where space is limited or a low profile nut is required. This A2-035 nut is approximately half the height of a standard hexagonal nut and is suitable for low clearance applications. It is often used as a locking nut to prevent loosening due to vibration by tightening the thin nut onto another hexagonal nut.
Product Data

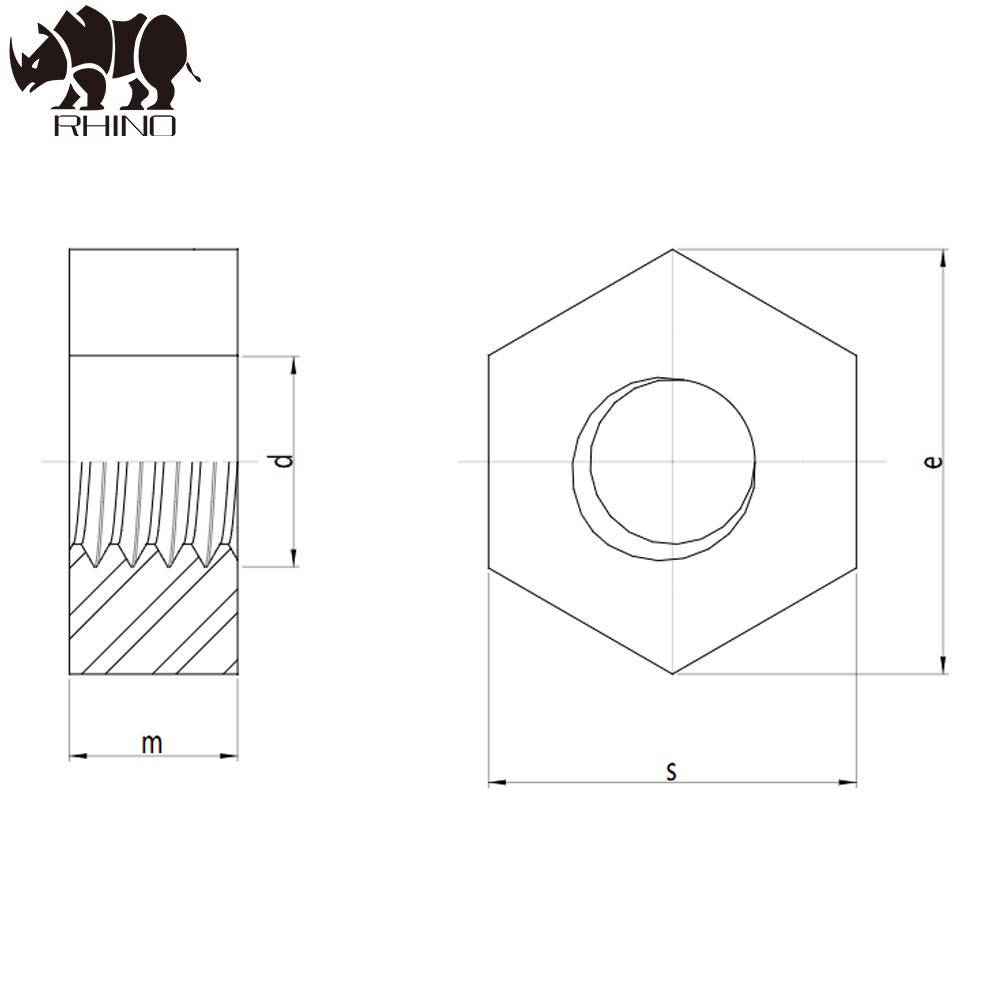

Specification
Diameter(d)
Pitch
s
m
M1.6
0.35
3.2-3.02
1-0.75
M2
0.4
4-3.82
1.2-0.95
M2.3
0.4
4.5-4.32
1.6-1.35
M2.5
0.45
5-4.82
1.6-1.35
M2.6
0.45
5-4.82
1.6-1.35
M3
0.5
5.5-5.32
1.8-1.55
M3.5
0.6
6-5.82
2-1.75
M4
0.7
7-6.78
2.2-1.95
M5
0.8
8-7.78
2.7-2.45
M6
1.0
10-9.78
3.2-2.9
M8
1.25
13-12.73
4-3.7
M10
1.5
17-15.73
5-4.7
M12
1.75
19-17.73
6-5.7
M14
2
22-20.67
7-6.42
M16
2
24-23.67
8-7.42
M18
2.5
27-26.16
9-8.42
M20
2.5
30-29.16
10-9.1
M22
2.5
32-31
11-9.9
M24
3.0
36-35
12-10.9
M27
3.0
41-40
13.5-12.4
M30
3.5
46-45
15-13.9
M33
3.5
50-49
16.5-15.4
M36
4.0
55-53.8
18-16.9
M39
4.0
60-58.8
19.5-18.2
M42
4.5
65-63.1
21-19.7
M45
4.5
70-68.1
22.5-21.2
M48
5
75-73.1
24-22.7
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
