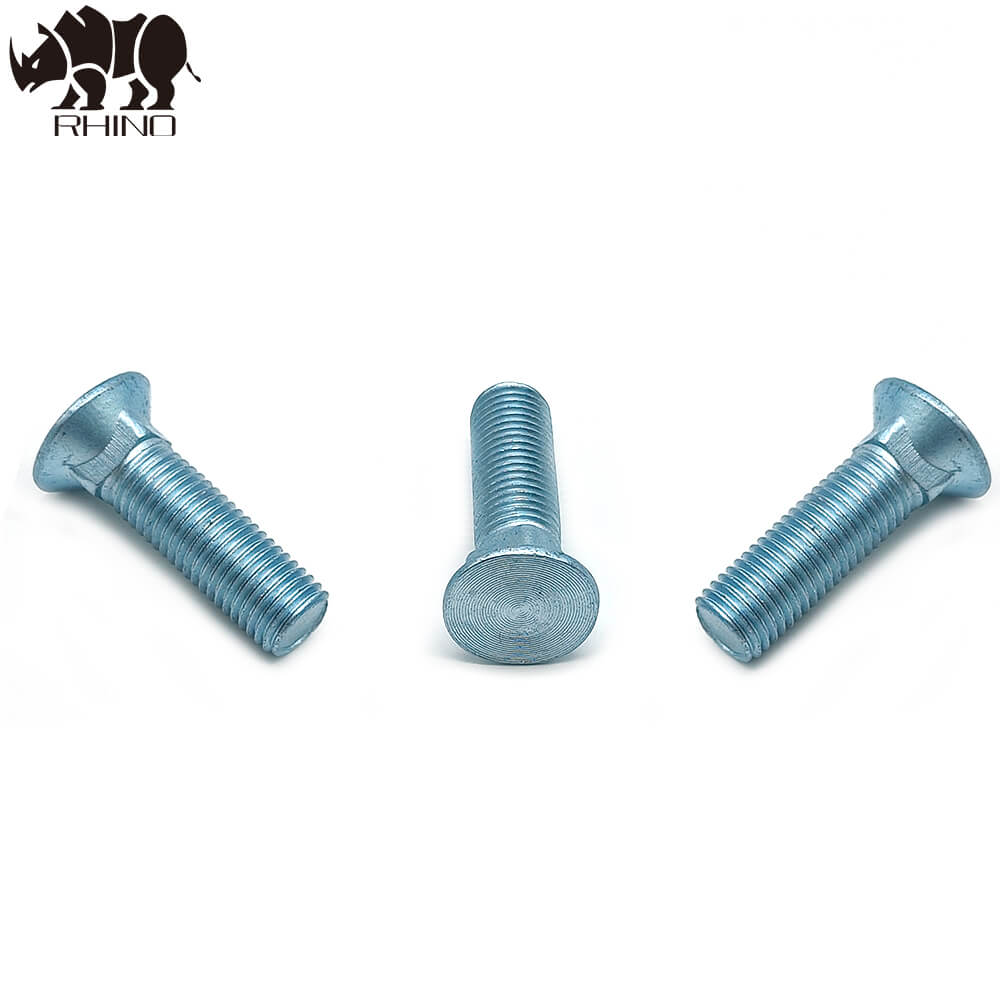

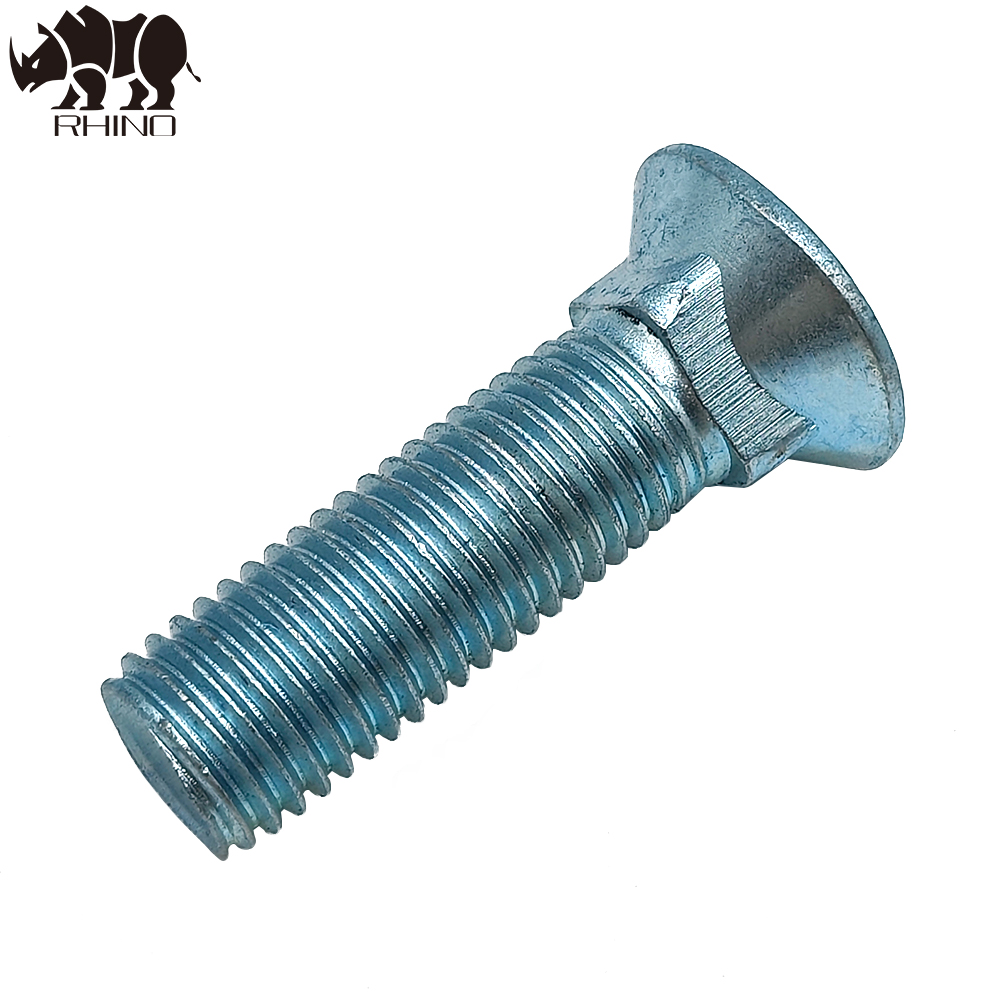

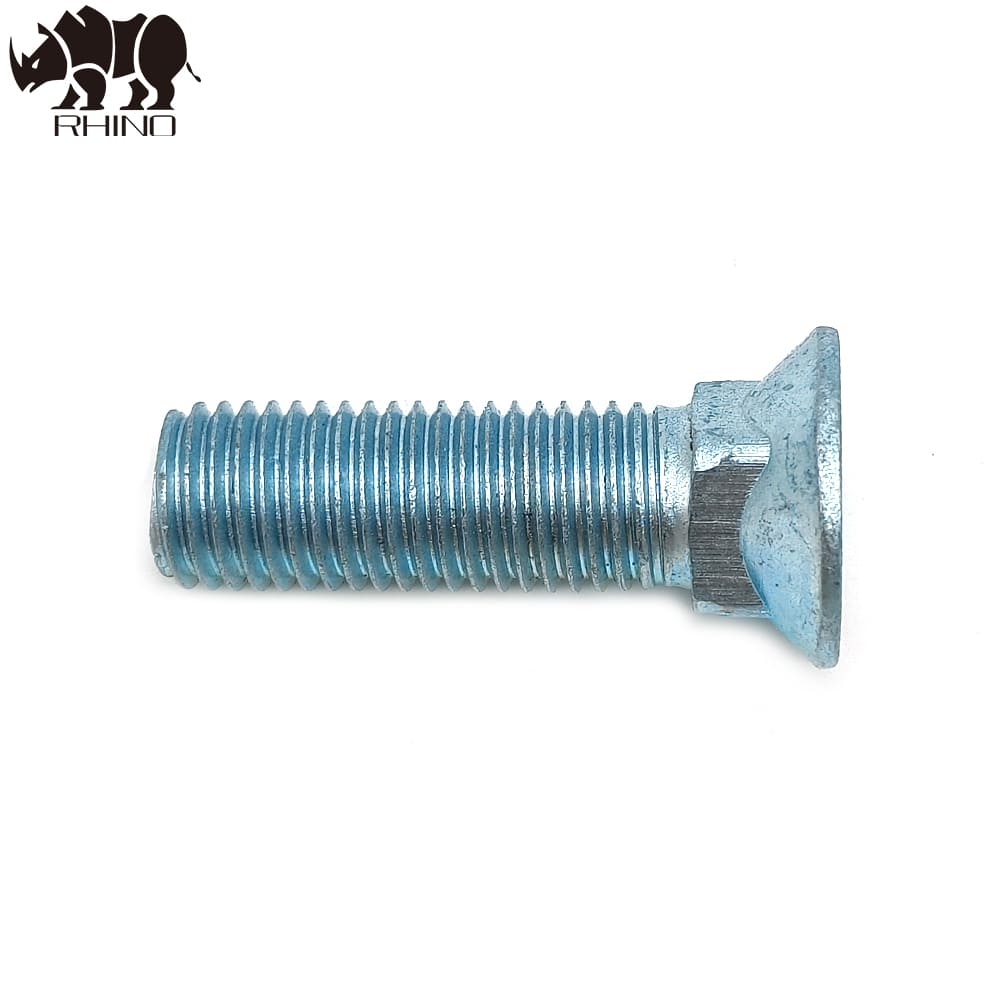

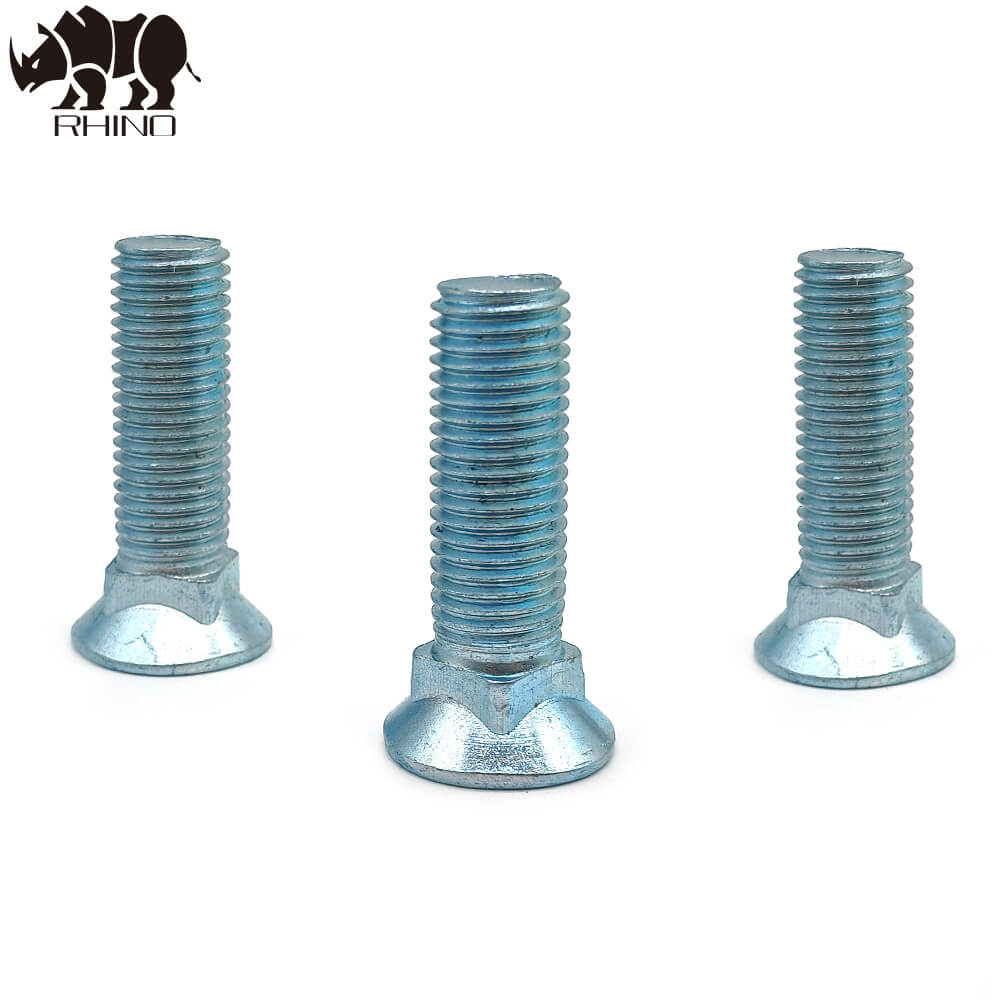

DIN 608 Countersunk Square Neck Bolts feature a flat head with a short square neck. These bolts are commonly used in heavy equipment like road graders and snow plows. The dome-style head design enhances bolt longevity. Sizes M10 and M12 fall under this standard, with product grade C properties.
Product Data

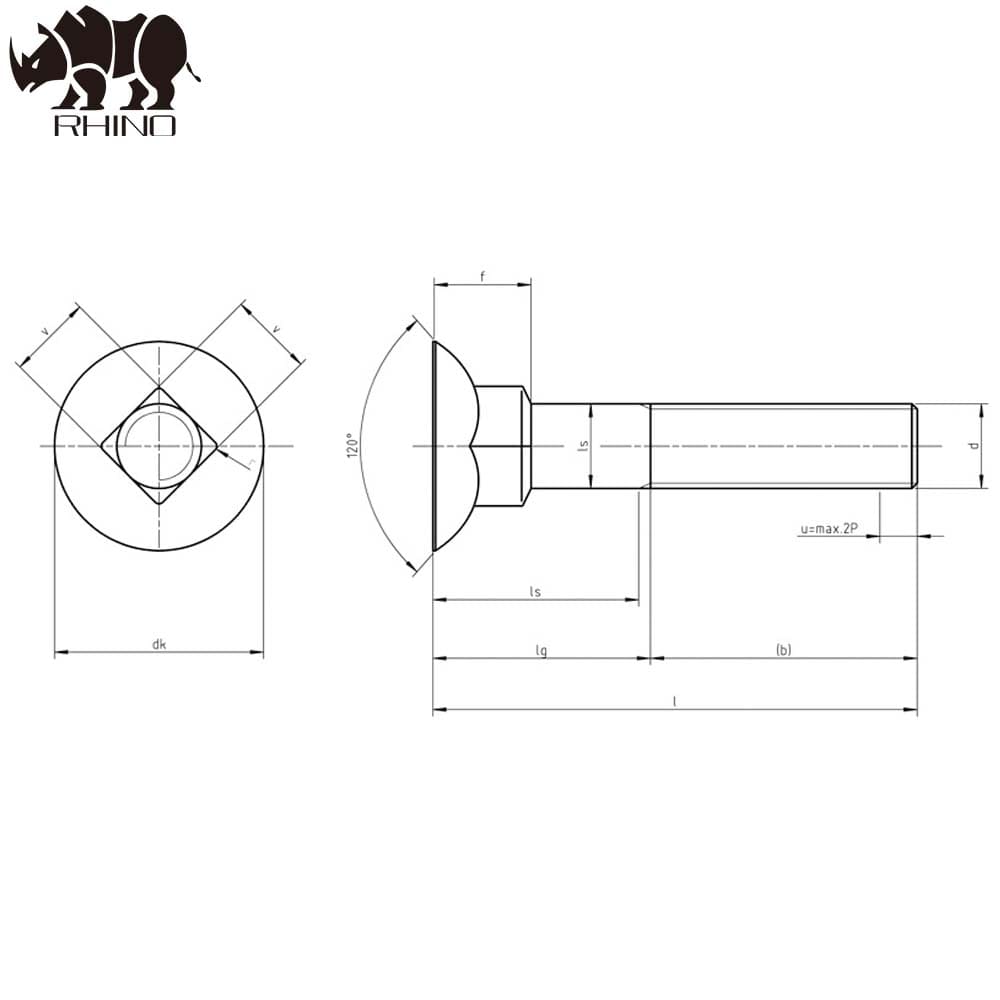

Specification
Thread d
M10
M12
p
1.5
1.75
b
26
30
dk
Max
19.65
24.65
Min
18.35
23.35
ds
Max
10
12
Min
9.42
11.3
f
Max
8.45
11.05
Min
7.55
9.95
r
Max
1.5
1.8
v
Max
10.58
12.7
Min
9.42
11.3
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
