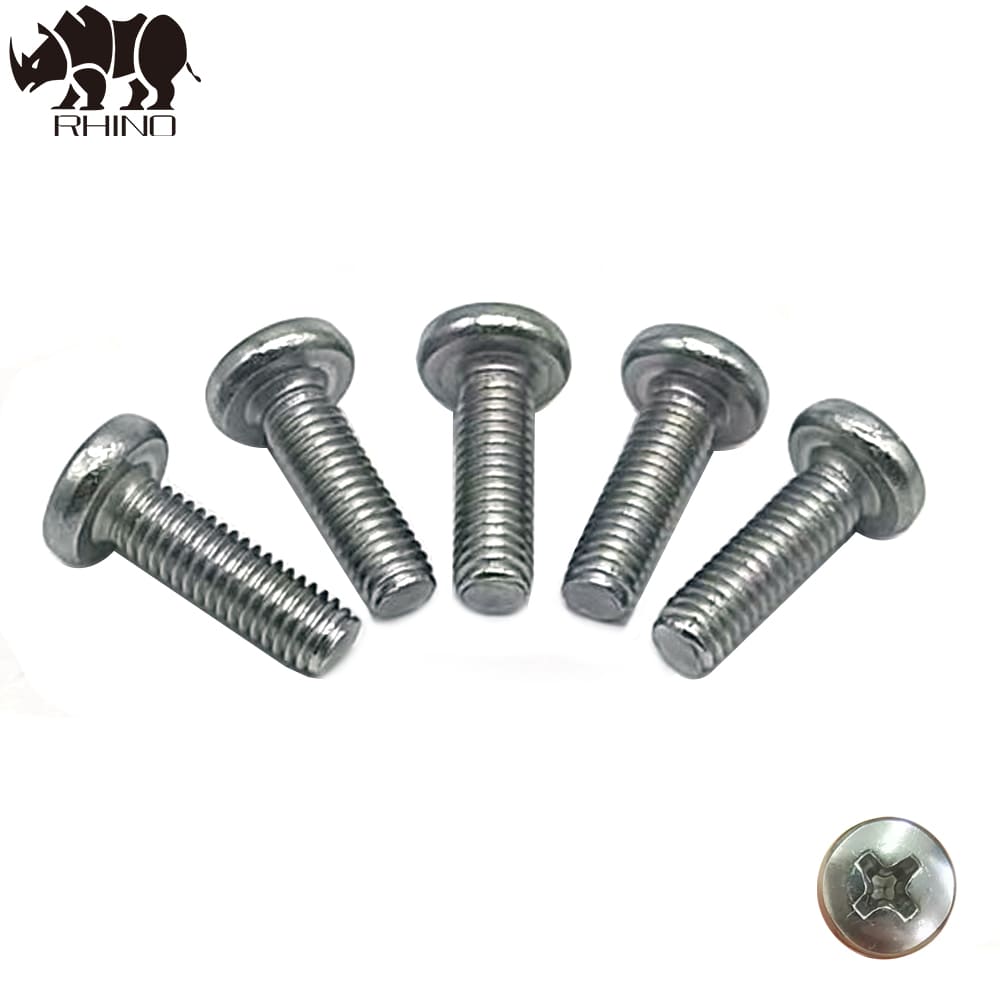

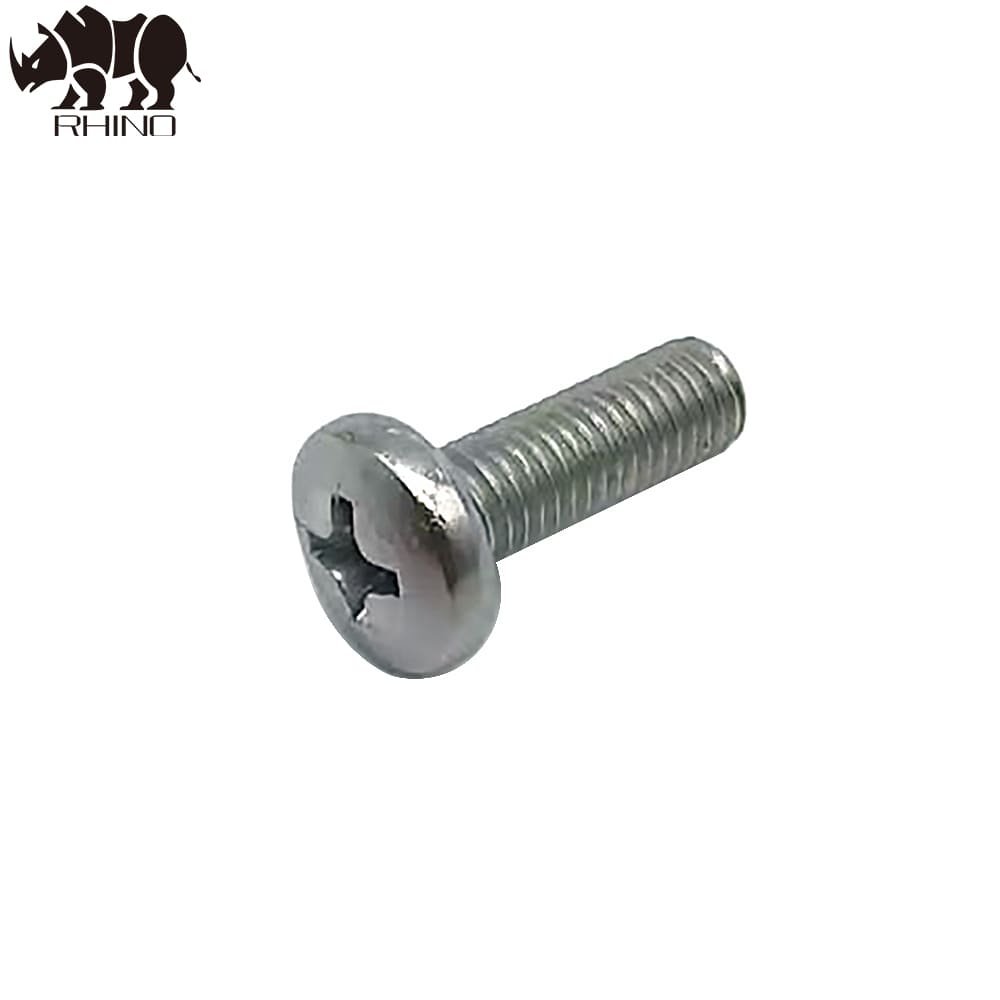

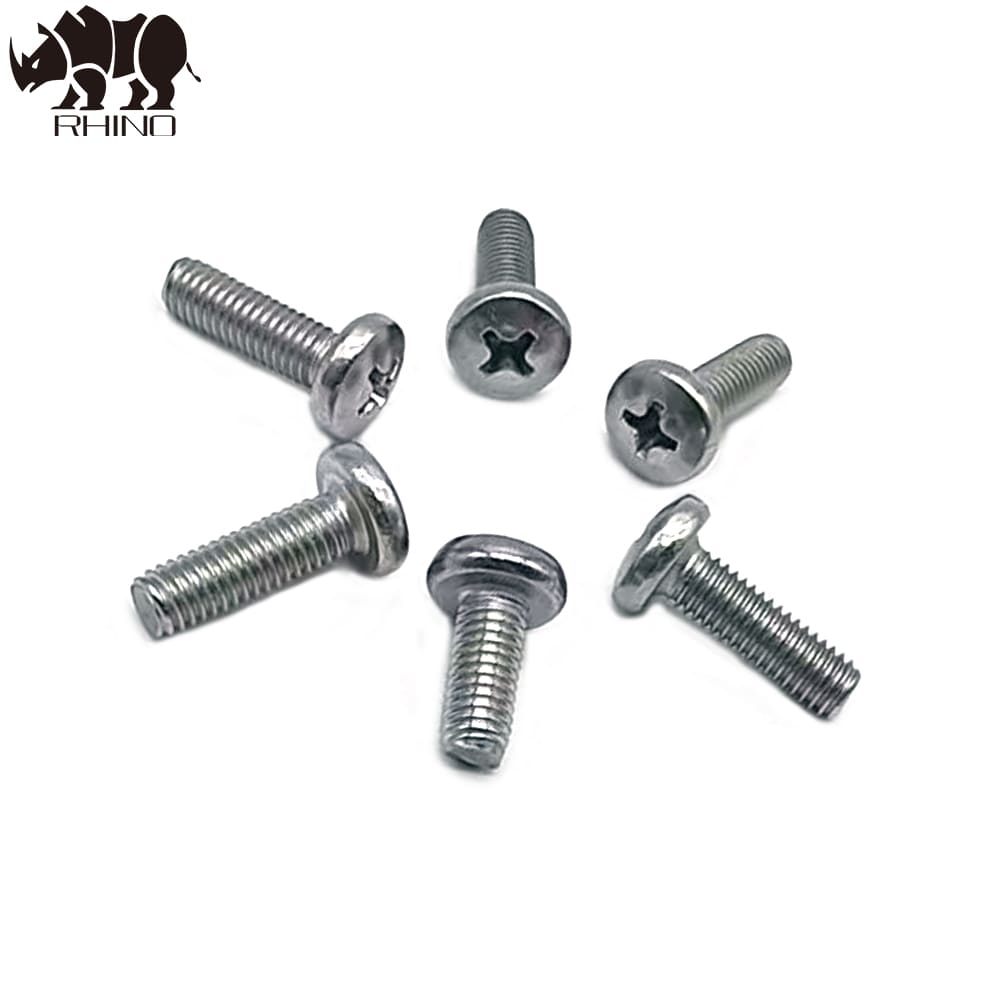

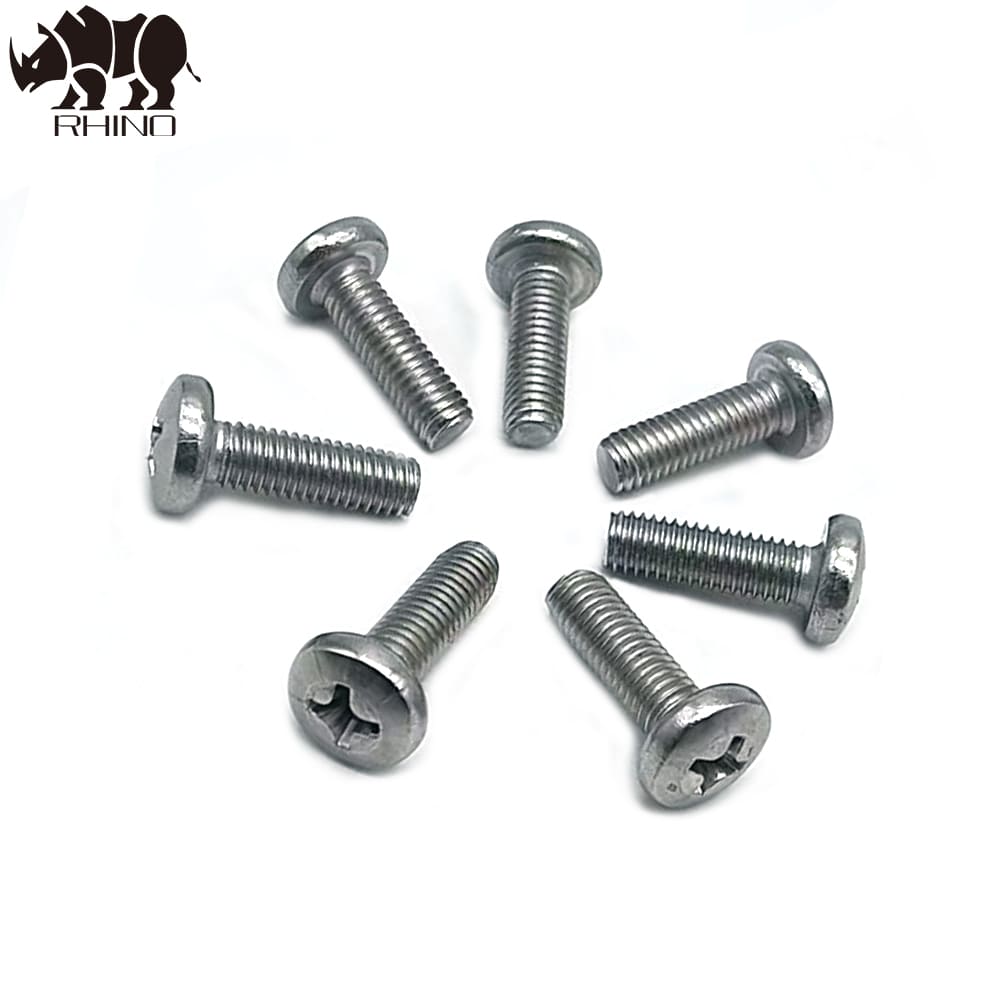

The Cross Recessed Pan Head Machine Screw is a type of machined screw with a flat head, rounded edges, and a flat bearing surface. It features a cross-shaped slot in its head, allowing it to be driven using Phillips screwdrivers or bits. These screws are commonly used in various applications where secure fastening is essential.

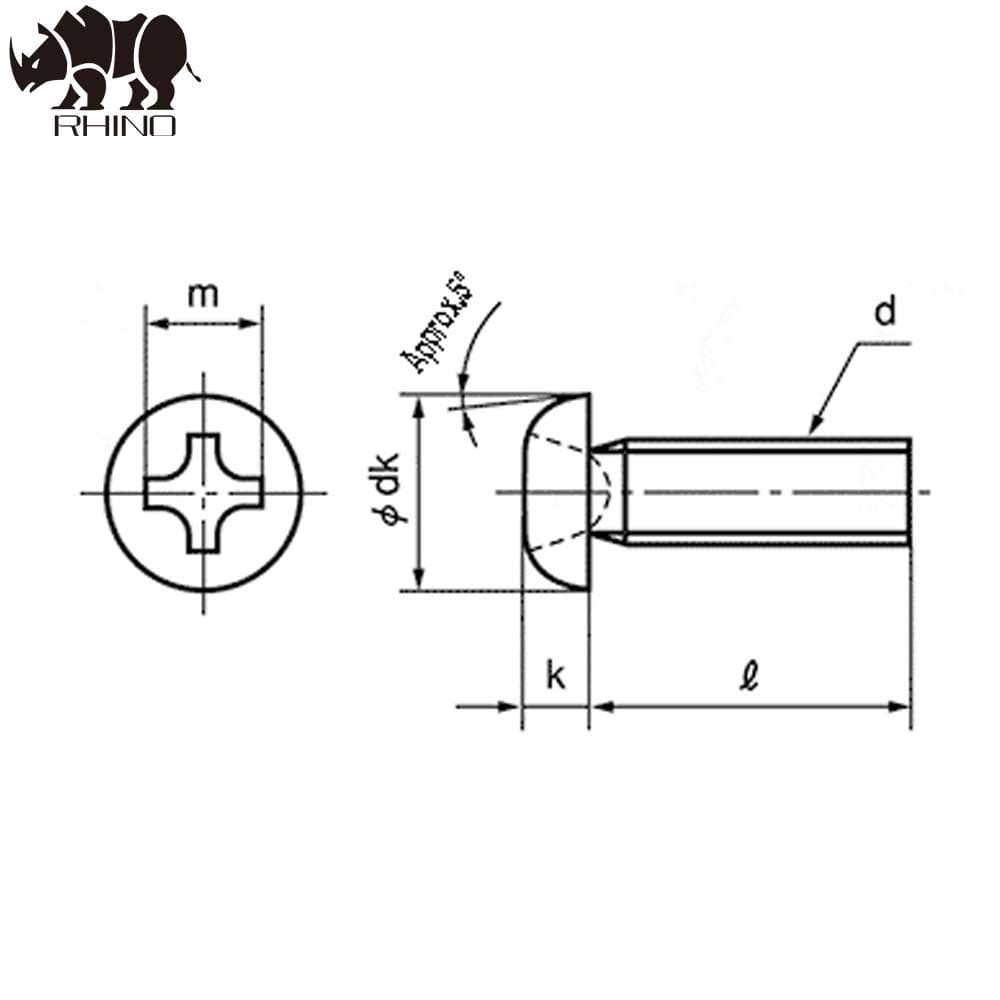

Product Data
Specification
d
Pitch P
number
dk
K
m
q
dimensions
tolerance
dimensions
tolerance
Max.
Min.
M2
0.4
1
3.5
0-0.4
1.3
±0.1
2.2
1.01
0.6
M2.3
0.4
4
1.5
2.4
1.21
0.8
M2.5
0.45
4.5
1.7
2.6
1.42
1
M2.6
0.45
4.5
1.7
2.6
1.42
1
M3
0.5
2
5.5
0-0.5
2
±0.15
3.6
1.43
0.86
M3.5
0.6
6
2.3
3.9
1.73
1.15
M4
0.7
7
2.6
4.2
2.03
1.45
M5
0.8
9
0-0.6
3.3
4.9
2.73
2.14
M6
1.0
3
10.5
0-0.7
3.9
±0.2
6.3
2.86
2.26
M8
1.25
14
0-0.8
5.2
7.8
4.36
3.73
M10
1.5
4
19
0-1.5
6
±1
9.4
5.1
4.3
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
