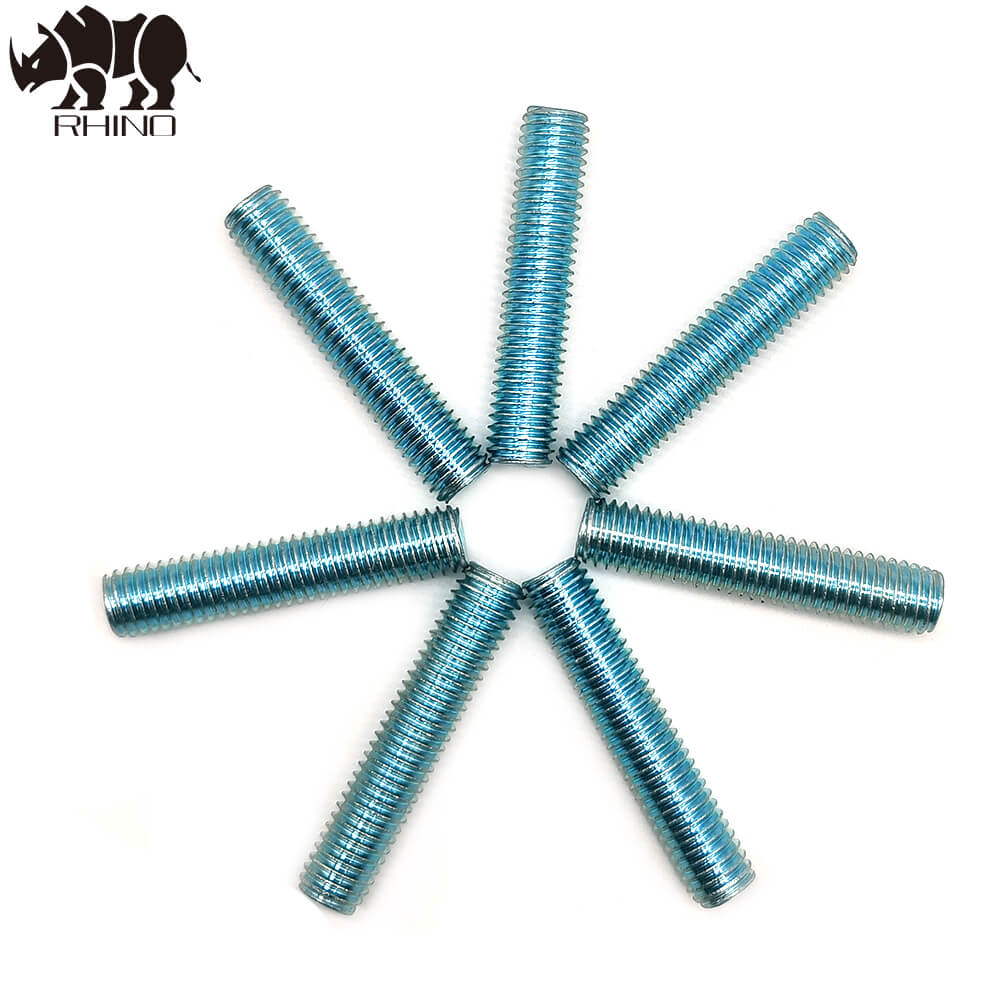

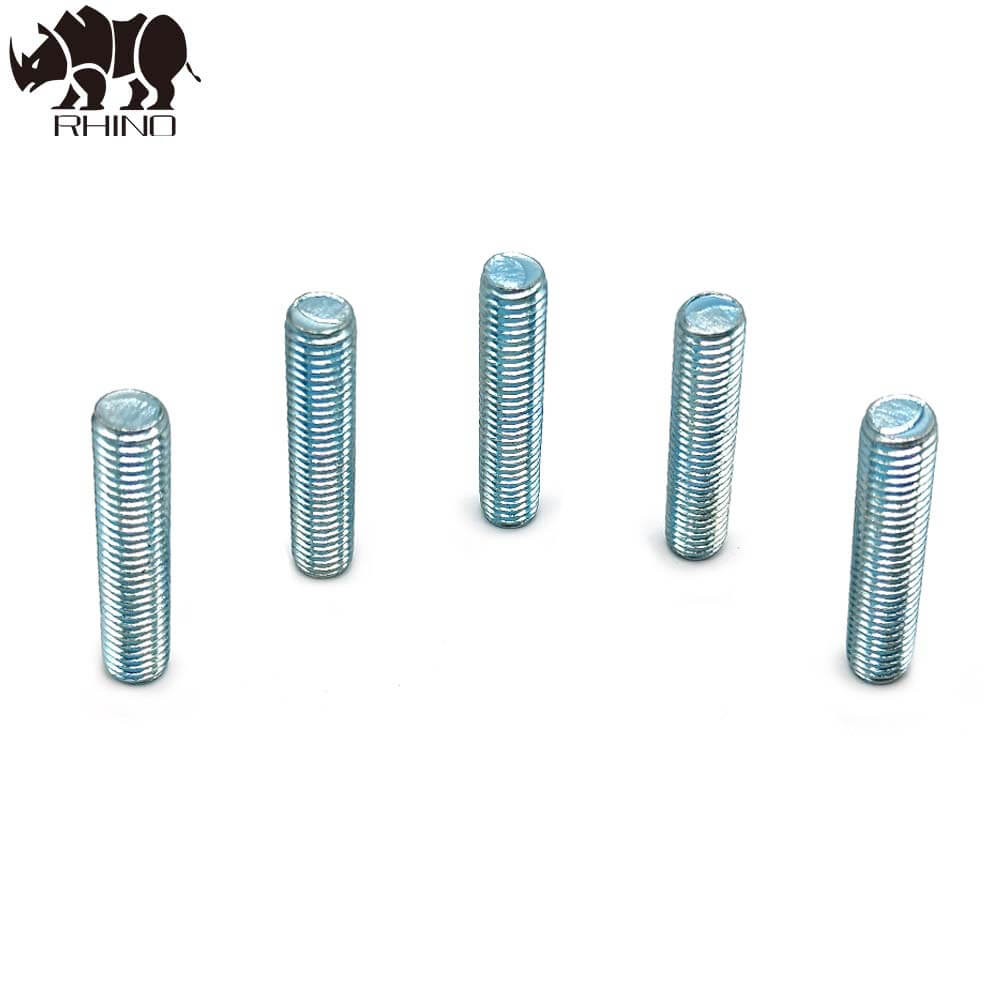

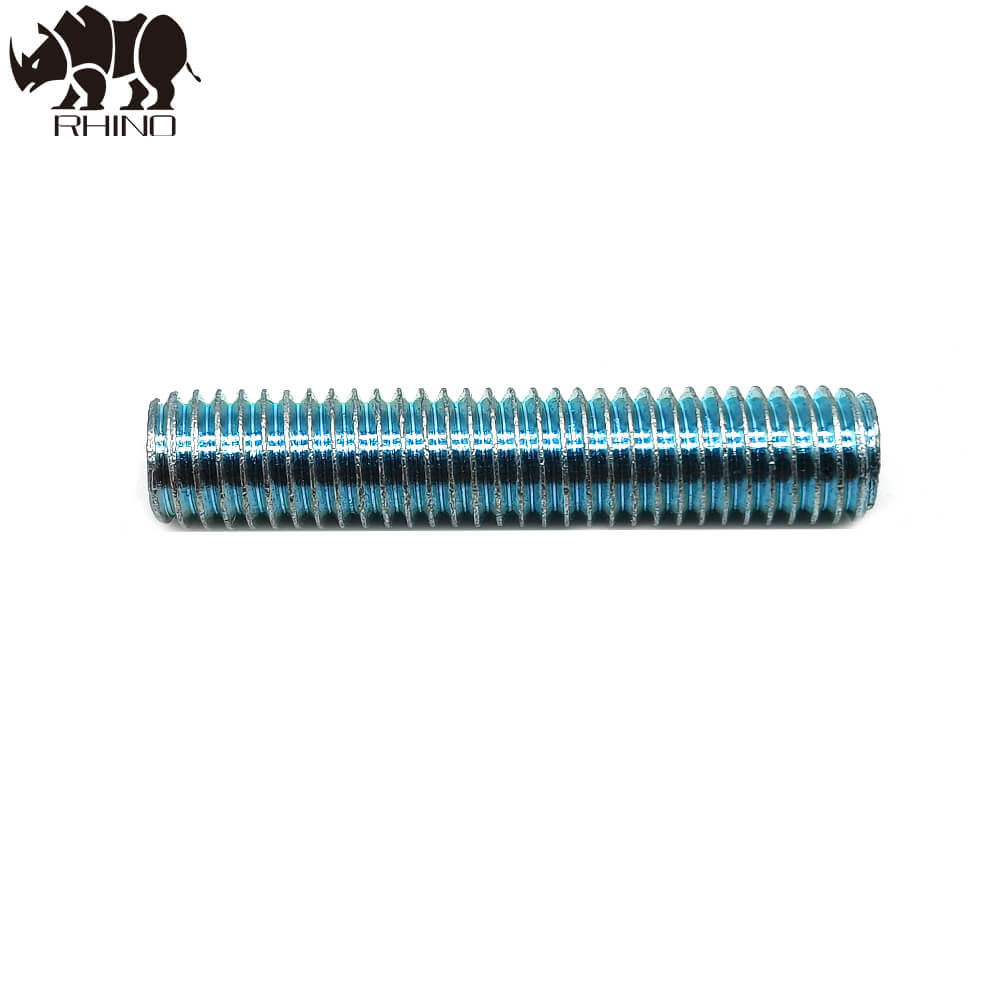

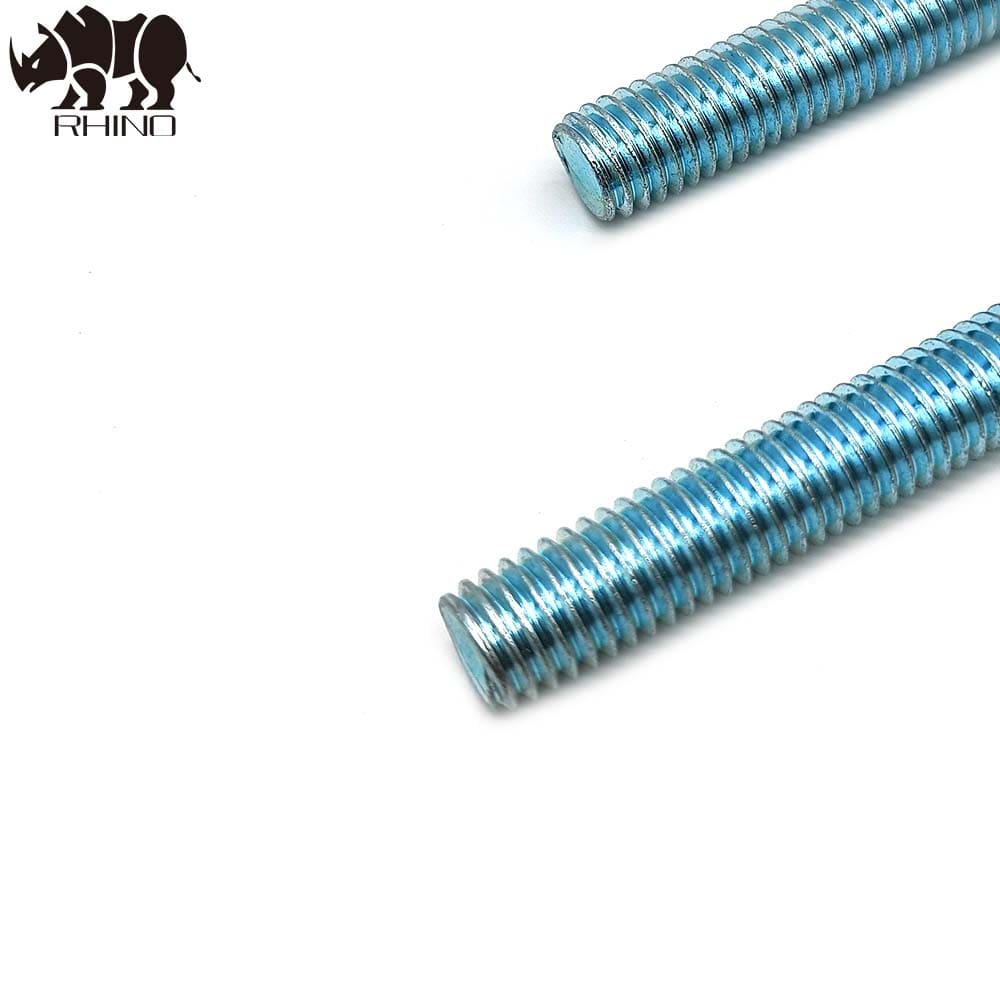

DIN 975 threaded rods are long rods with continuous threads running along their entire length, designed for tension joining and stabilizing purposes. Unlike screws or bolts, these rods do not have heads, making them highly versatile for various applications. Also referred to as all-thread rods (ATR), fully threaded rods, continuously threaded rods, or redi-rods, they are typically available in steel and stainless steel (A2 and A4) grades, with diameters ranging from M3 to M56.
DIN 975 is a German industrial standard that sets the specifications for these fully threaded rods, including their dimensions, material grades, and mechanical properties such as tensile strength, yield strength, and elongation. Rods adhering to the DIN 975 standard are essential for high-strength bolted connections, structural support, and environments requiring precise load-bearing capabilities. Widely used in construction, machinery, and engineering, these rods ensure uniformity, reliability, and optimal performance across various industrial applications.

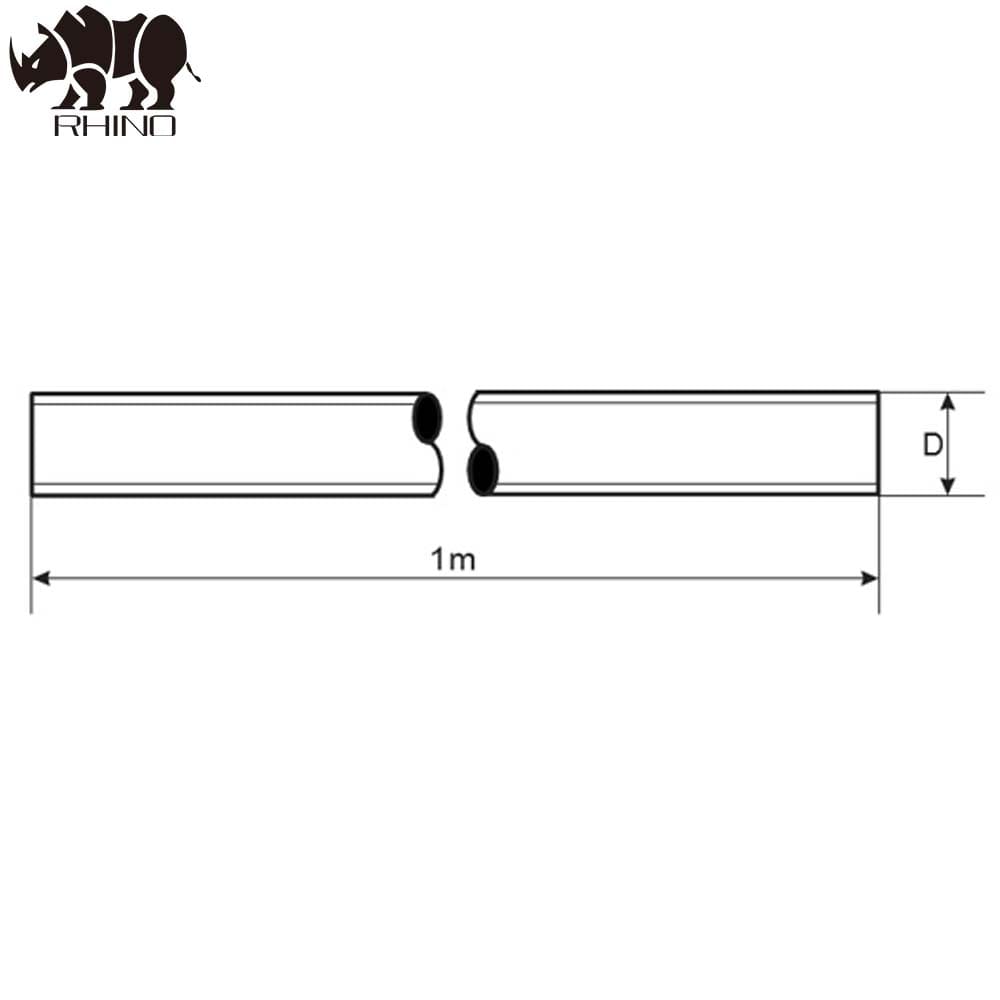

Product Data
Specification
d
l
d
l
M3
1000-3000
M22
1000-3000
M4
1000-3000
M24
1000-3000
M5
1000-3000
M27
1000-3000
M6
1000-3000
M30
1000-3000
M8
1000-3000
M33
1000-3000
M10
1000-3000
M36
1000-3000
M12
1000-3000
M39
1000-3000
M14
1000-3000
M42
1000-3000
M16
1000-3000
M48
1000-3000
M18
1000-3000
M52
1000-3000
M20
1000-3000
M56
1000-3000
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
