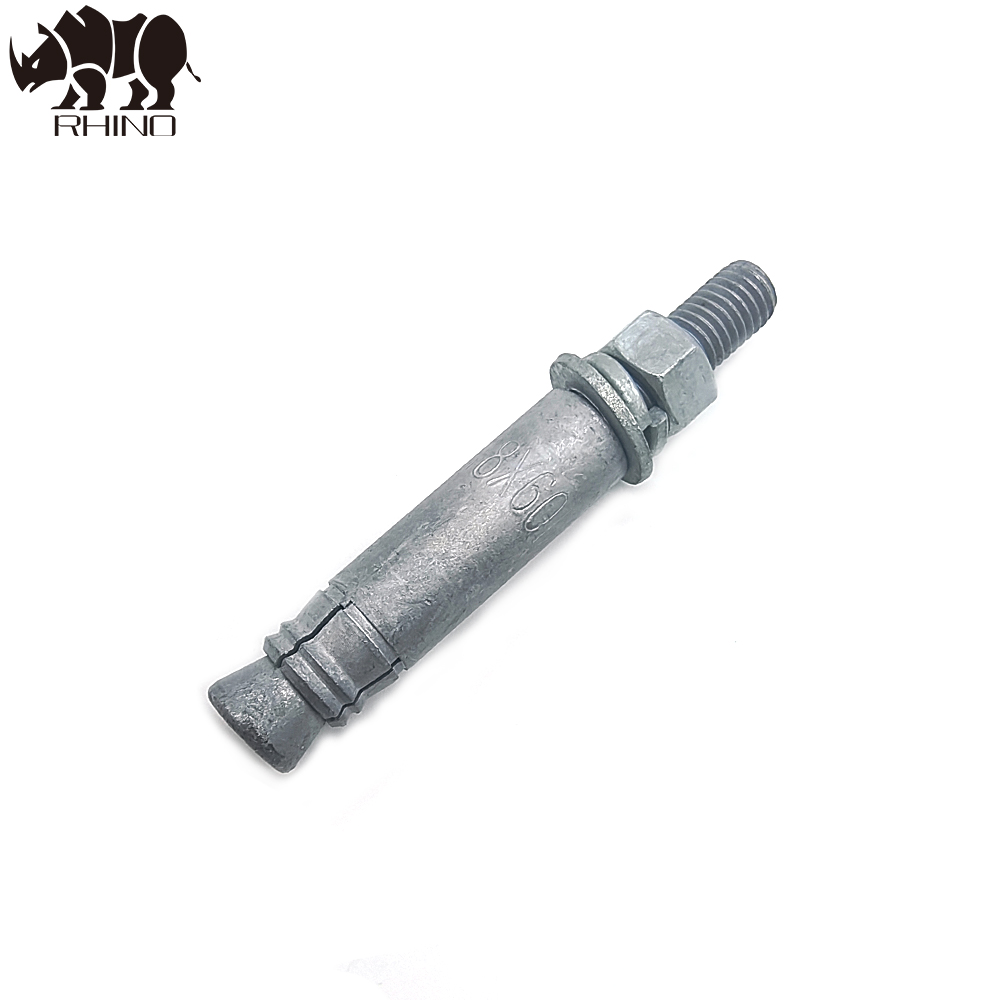

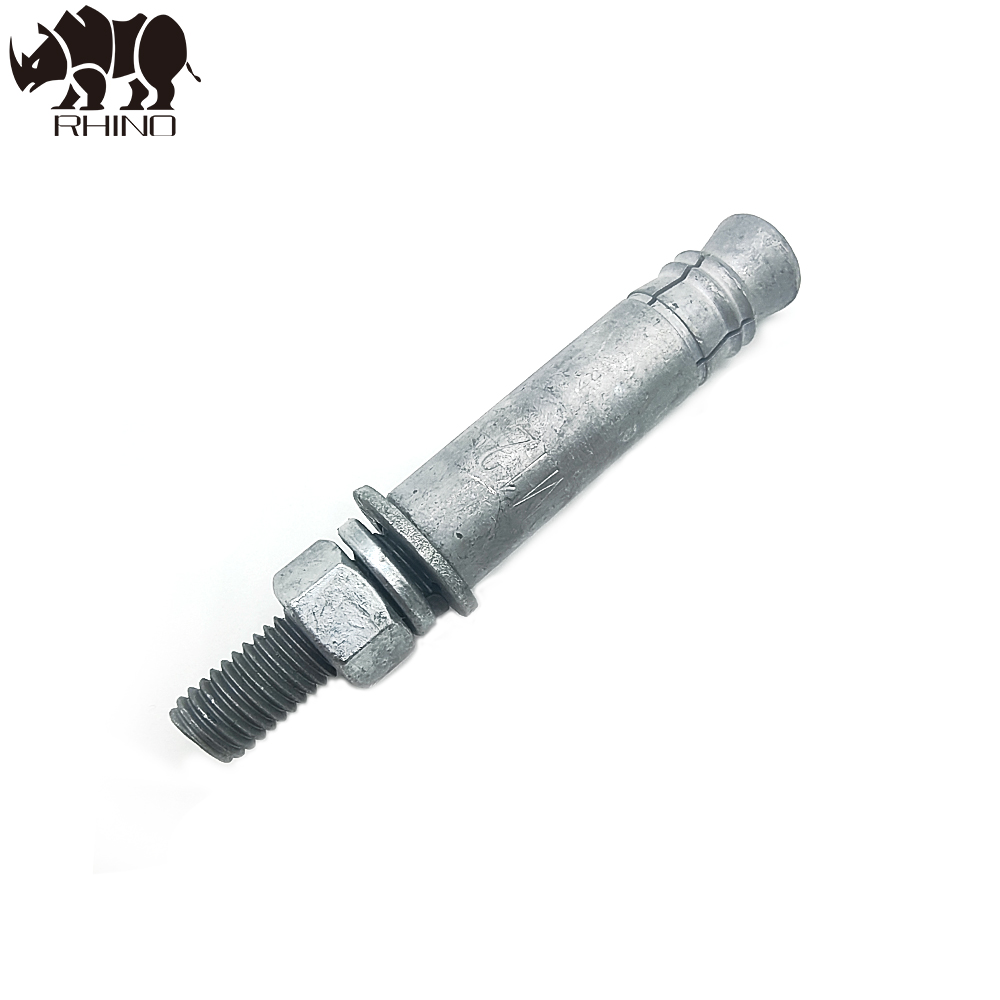

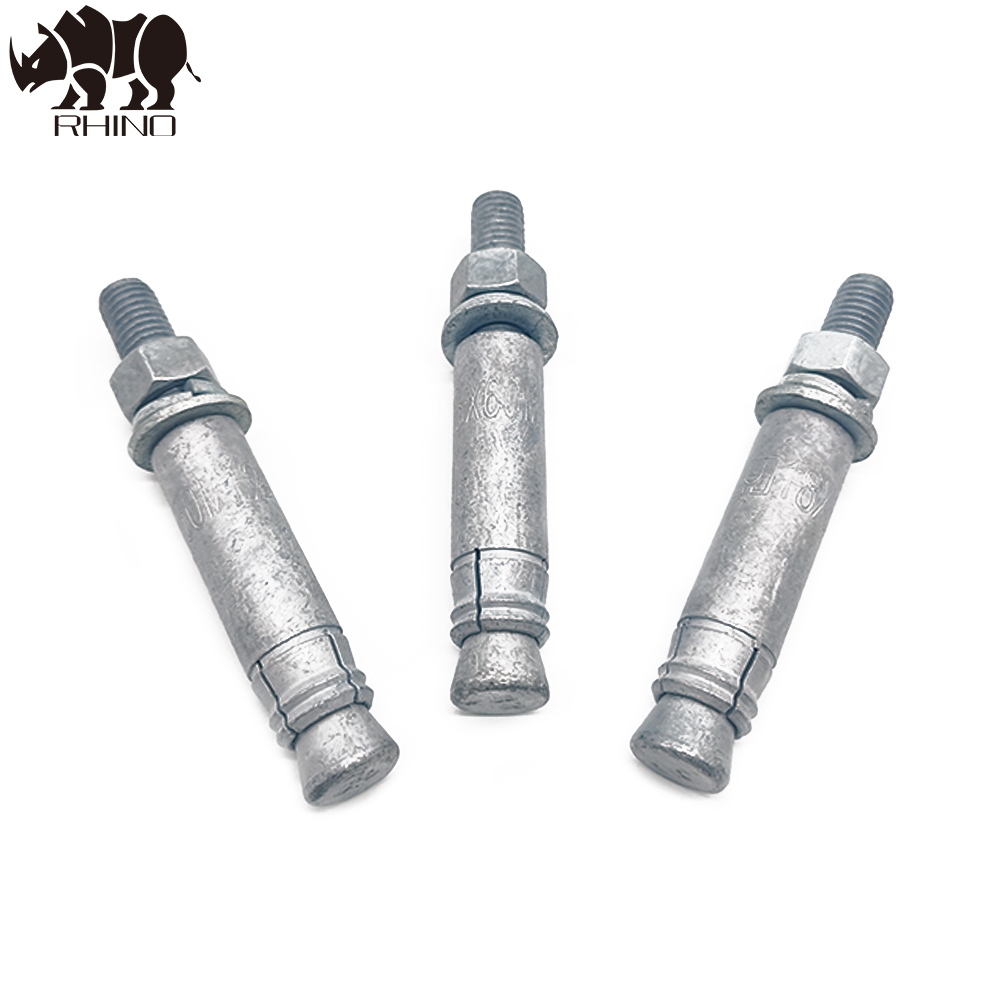

Heavy Duty Self-cutting Machine Anchor is a specially designed threaded connector, mainly composed of a threaded rod and an anchor pad. The threaded rod is usually made of high-strength steel and has good tensile properties. The anchor pad is used to increase the friction between the anchor bolt and the foundation and improve the shear resistance. It does not require pre-embedding during installation, and there is almost no expansion stress in the natural environment. It meets different burial depth requirements and is suitable for installation with small spacing and small margins.
Product Data
Specification
Size
Drilling diameter(mm)
Drilling depth(mm)
Effective anchoring depth
Tensile(KN)
Shear(KN)
M8*80
12
65
60
15
10
M10*130
15
65
60
25
15
M12*130
18
85
80
35
20
M16*170
22
120
110
50
30
M20*200
28
150
140
70
40
M24*260
32
190
180
100
60
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
