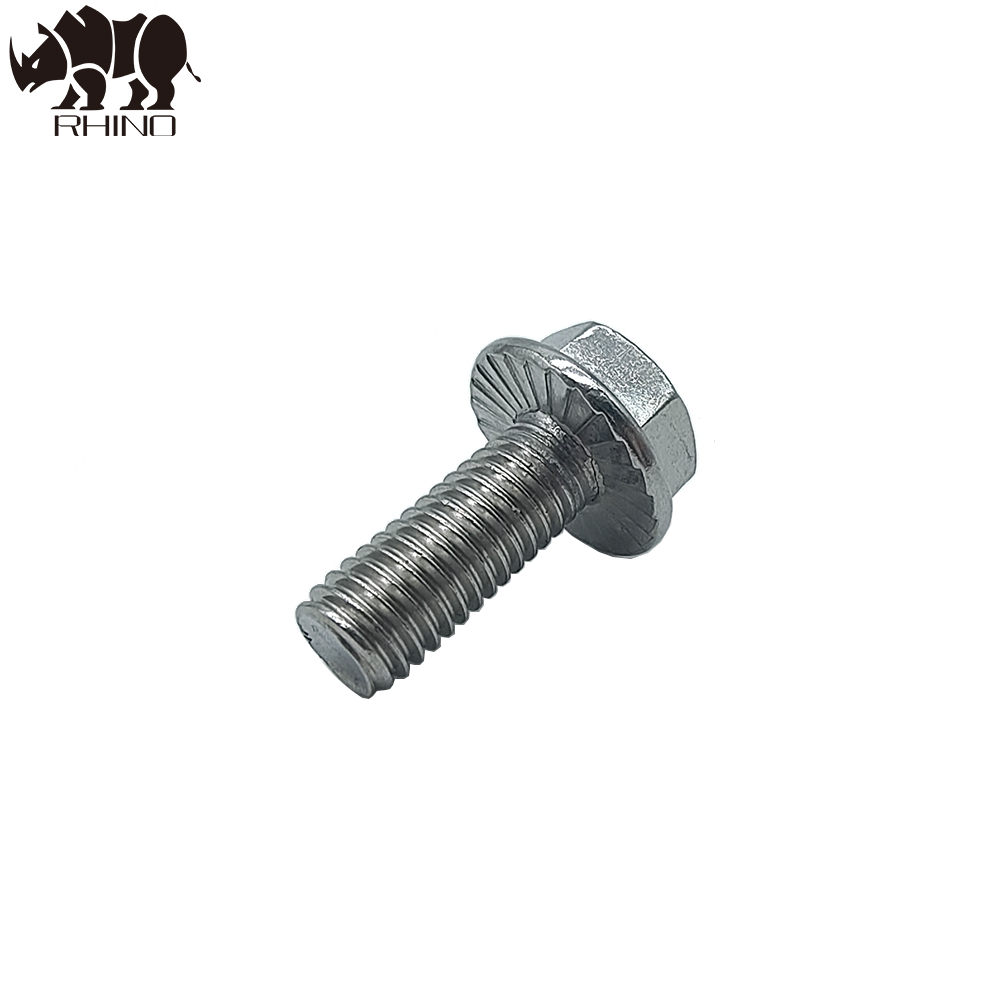

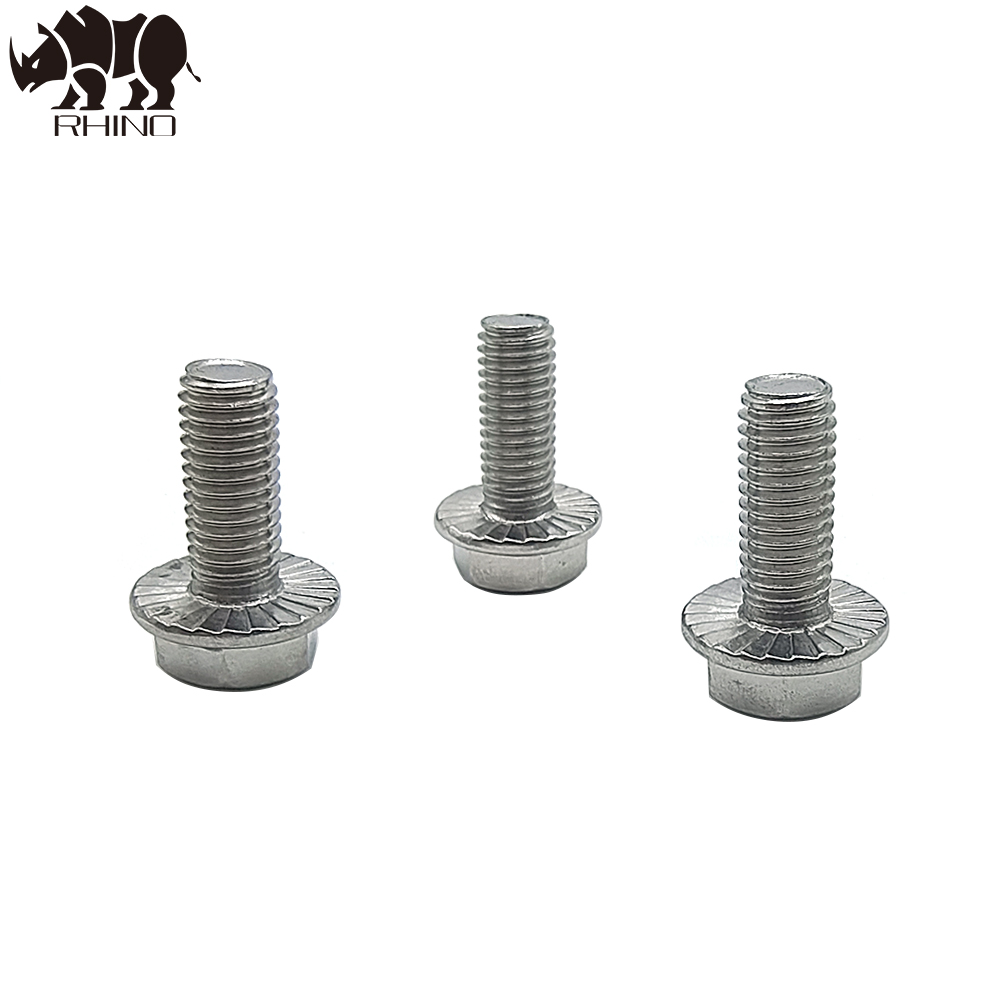

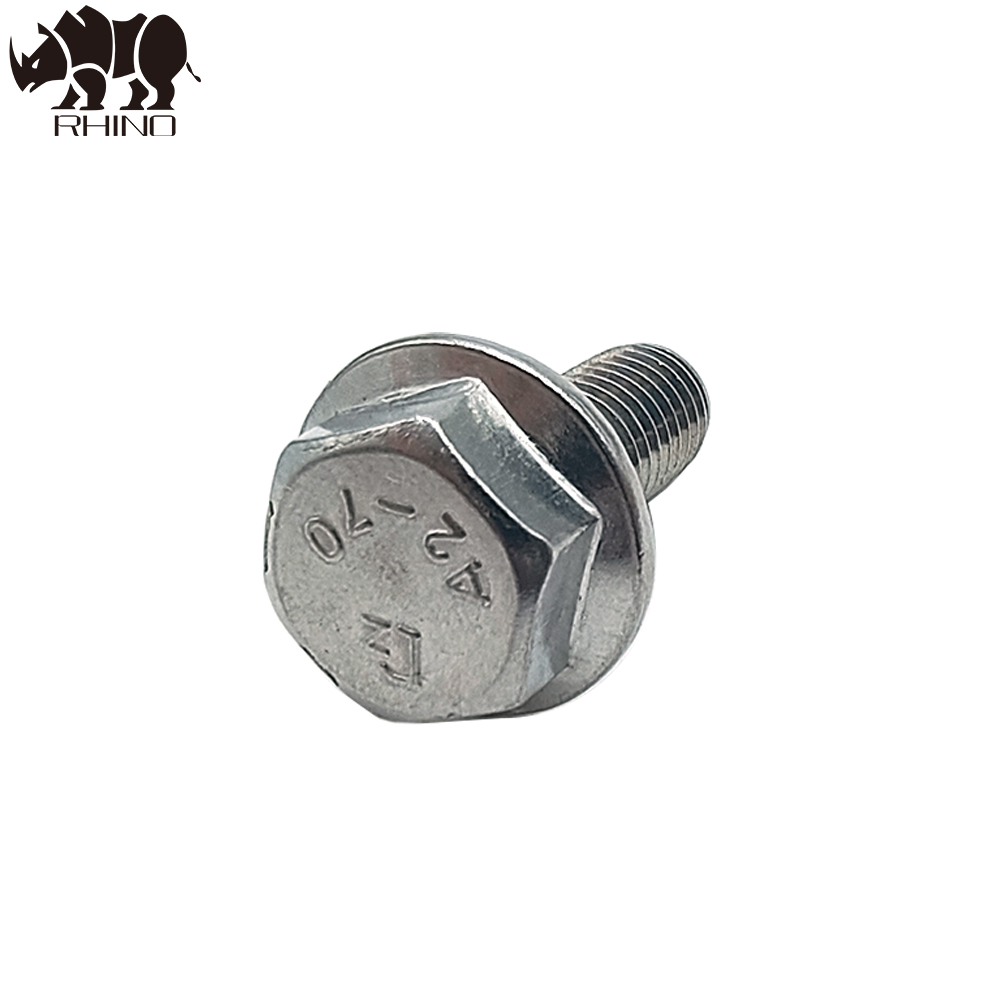

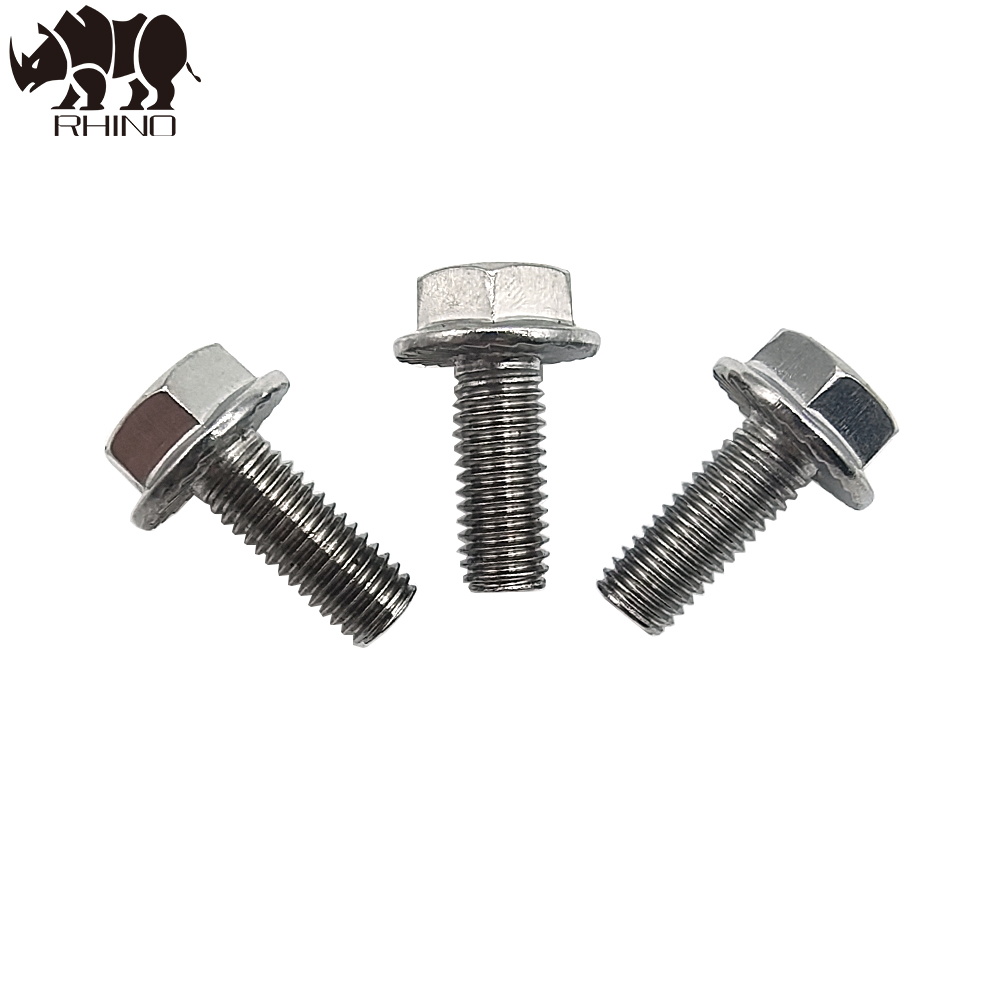

Hex Serrated Flange Bolt is a hexagonal head bolt with flange and serrations. The hexagonal head design facilitates installation and removal using a wrench or other tools. The flange surface expanded below the bolt head increases the contact area, thereby dispersing pressure and reducing damage to the connecting materials. The serration design on the flange surface can increase friction and prevent the bolt from loosening under vibration or other external forces. This bolt is often used in applications that require high strength and anti-loosening, such as automobiles, mechanical equipment and construction projects.
Product Data

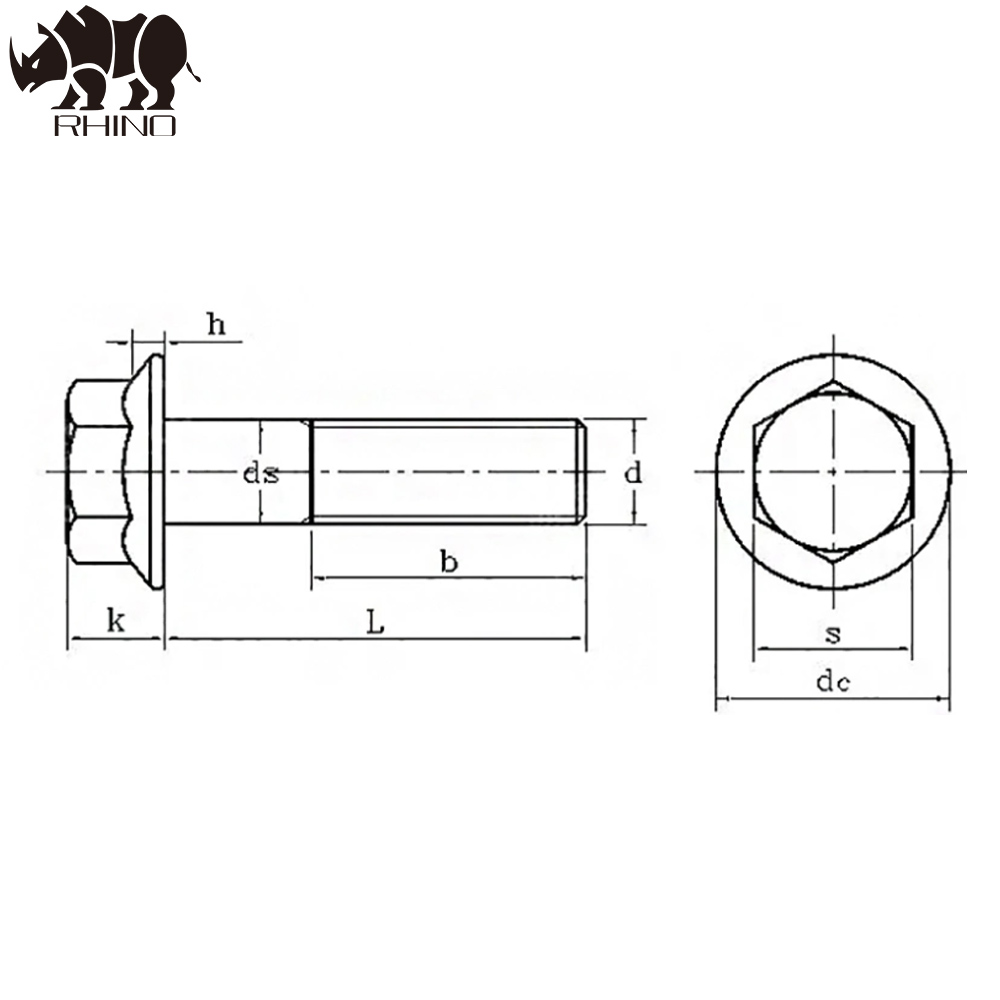

Specification
d
P
b
dc
max
ds
k
max
S
L≤125
125<L≤200
L>200
max
min
max
min
M5
0.8
16
/
/
11.4
5
4.82
5.6
7
6.78
M6
1
18
/
/
13.6
6
5.82
6.9
8
7.78
M8
1.25
22
28
/
17
8
7.78
8.5
10
9.78
M10
1.5
26
32
/
20.8
10
9.78
9.7
13
12.73
M12
1.75
30
36
/
24.7
12
11.73
12.1
15
14.73
M14
2
34
40
/
28.6
14
13.73
12.9
18
17.73
M16
2
38
44
57
32.8
16
15.73
15.2
21
20.67
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
