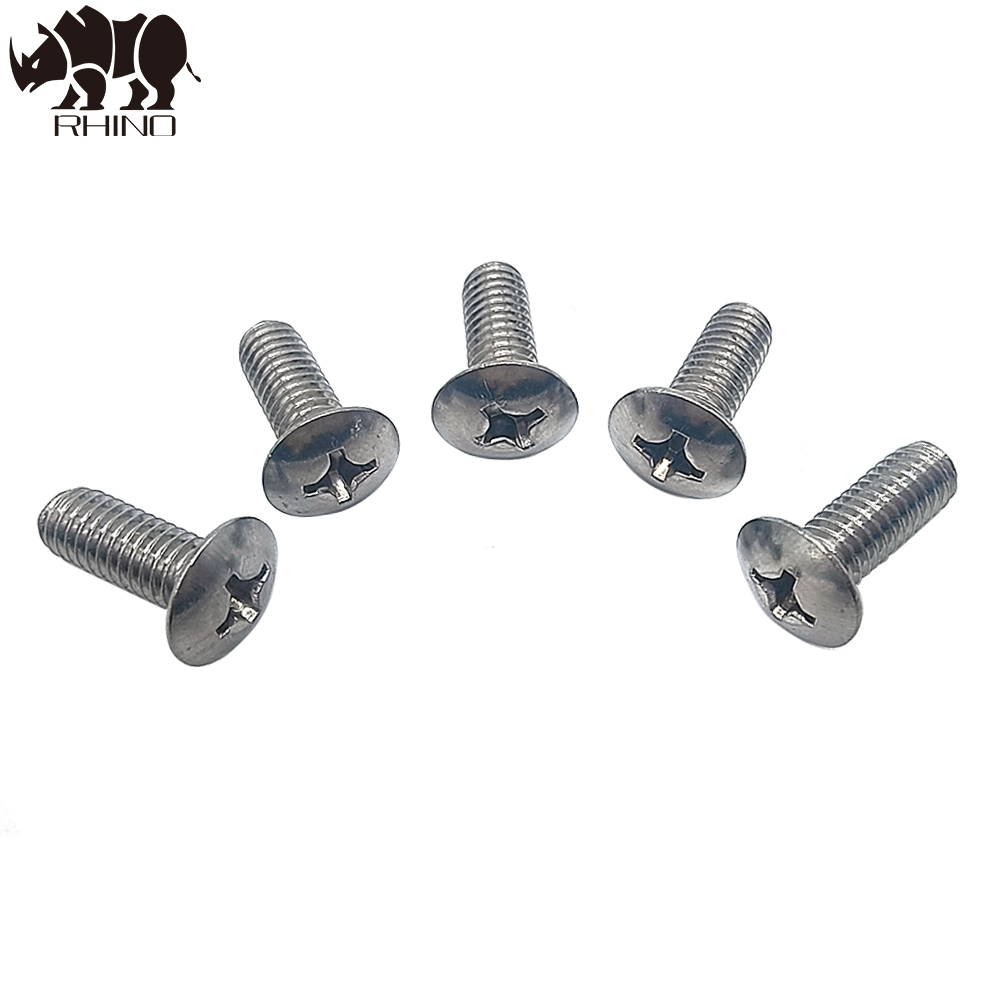

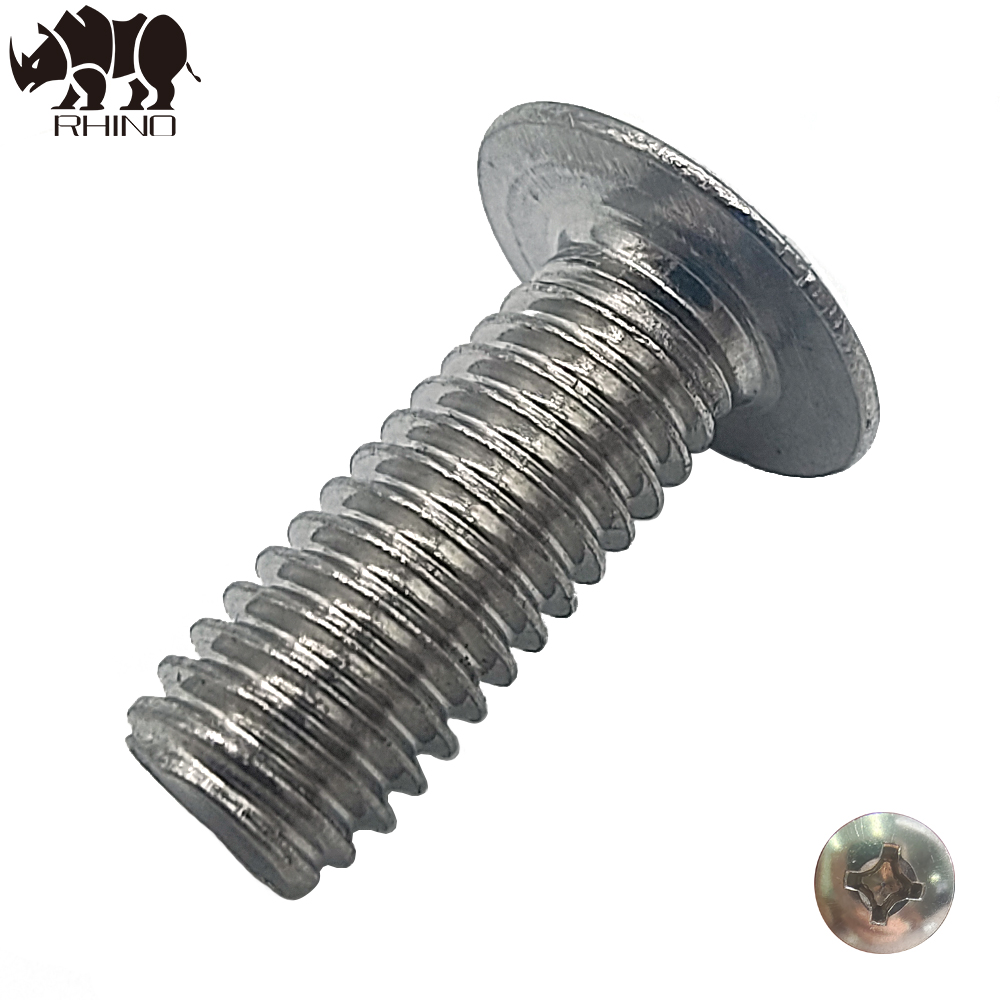

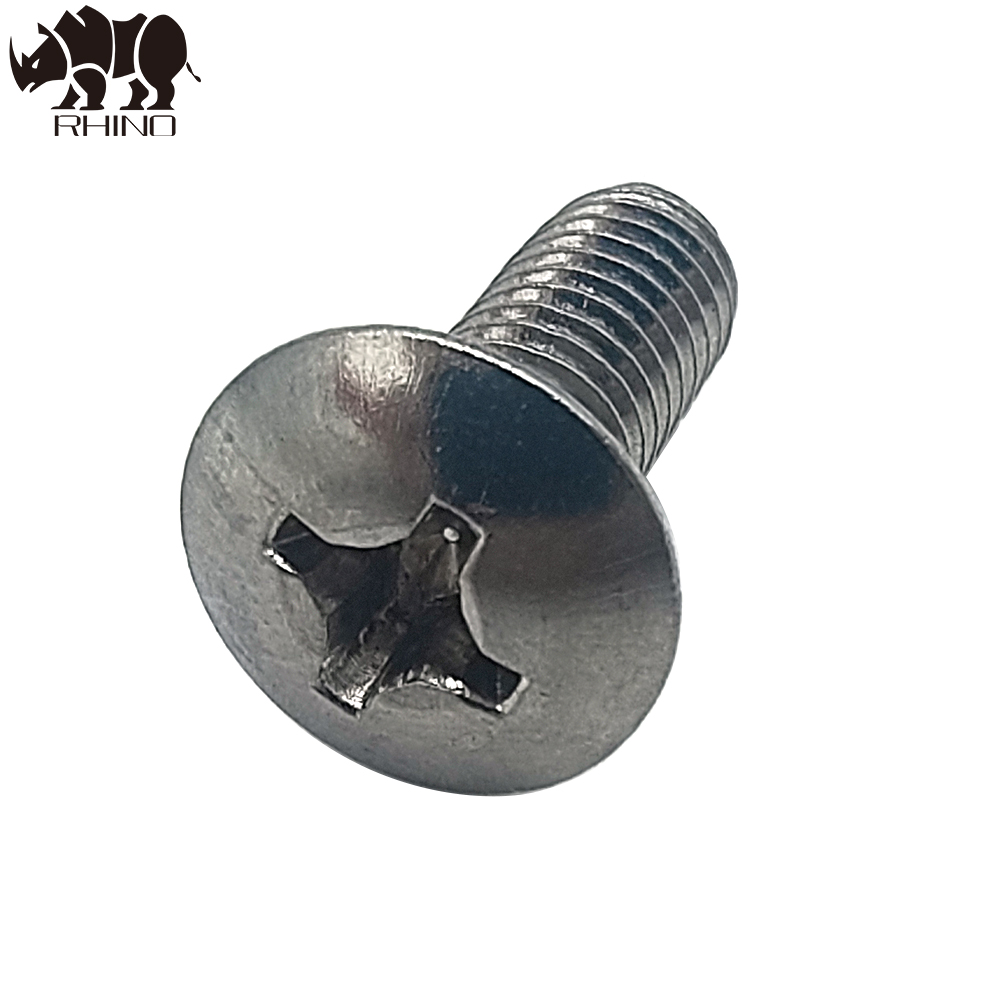

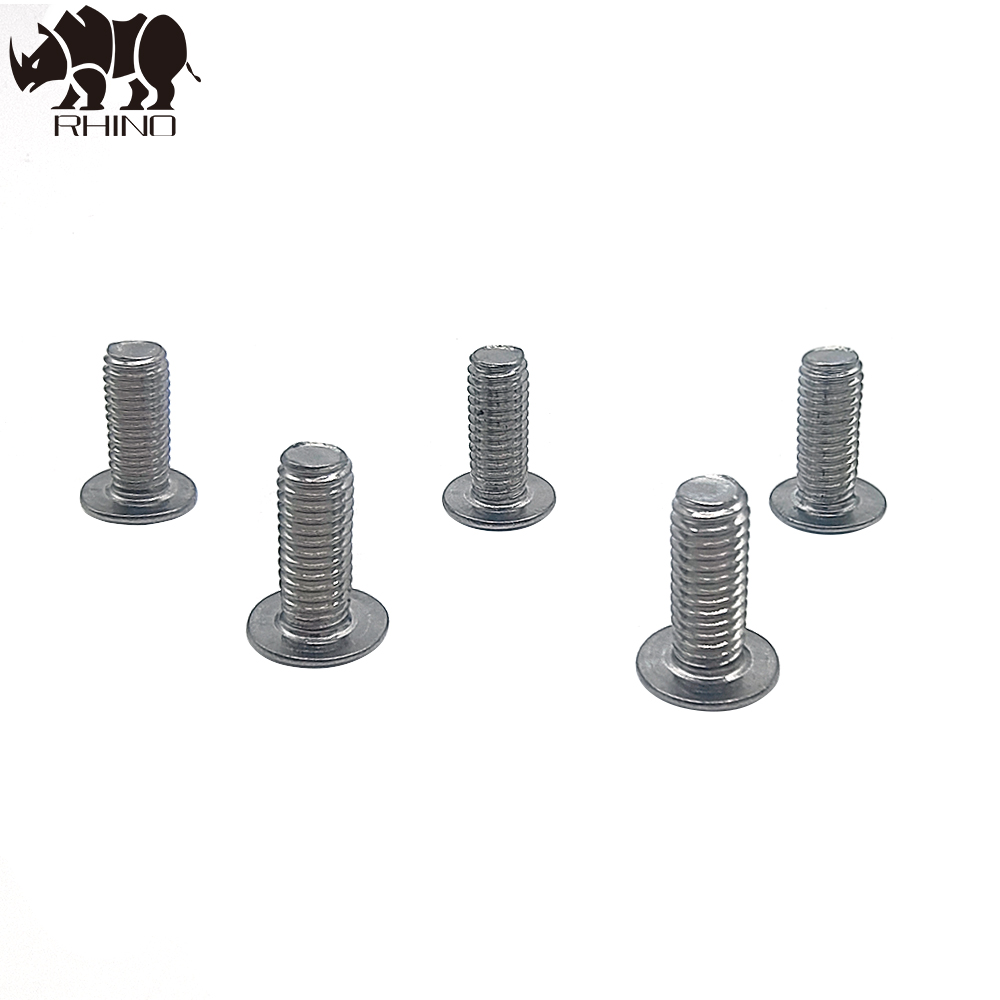

Phillips Truss Large Flat Round Head Screw 6x15 is a common machine screw. The head of this screw is wide and flat, providing a larger bearing surface and reducing damage to the material. The head is designed with a cross-shaped groove, which is convenient for installation with a Phillips screwdriver. The thread diameter is 6 mm and the length is 15 mm. Other specifications can also be selected. This screw is often used to fix thin materials, such as metal sheets, plastics, etc.
Product Data

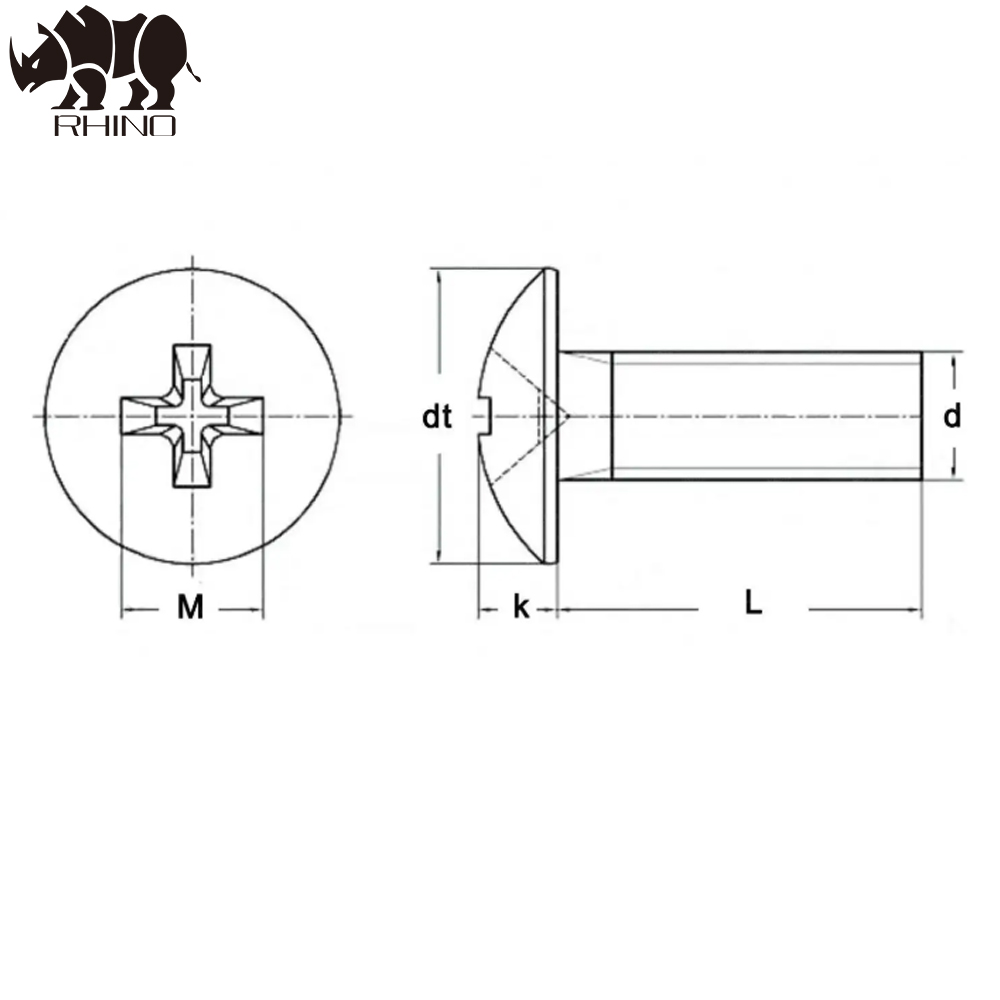

Specification
d
Thread diameter
Pitch
dt
K
M
min
max
min
max
max
M2(2mm)
0.4
4.1
4.5
1.1
1.3
2.2
M2.5(2.5mm)
0.45
5.3
5.7
1.4
1.6
2.5
M3(3mm)
0.5
6.4
6.9
1.75
2.05
3.6
M4(4mm)
0.7
8.9
9.4
2.35
2.65
4.2
M5(5mm)
0.8
11.2
11.8
2.95
3.25
4.9
M6(6mm)
1
13.3
14
3.5
3.9
6.2
M8(8mm)
1.25
17
17.8
4.6
5
7.7
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
