Round Mushroom Head Square Neck Carriage Bolt DIN603
Contact Us Now
Description
Reviews
Introduction

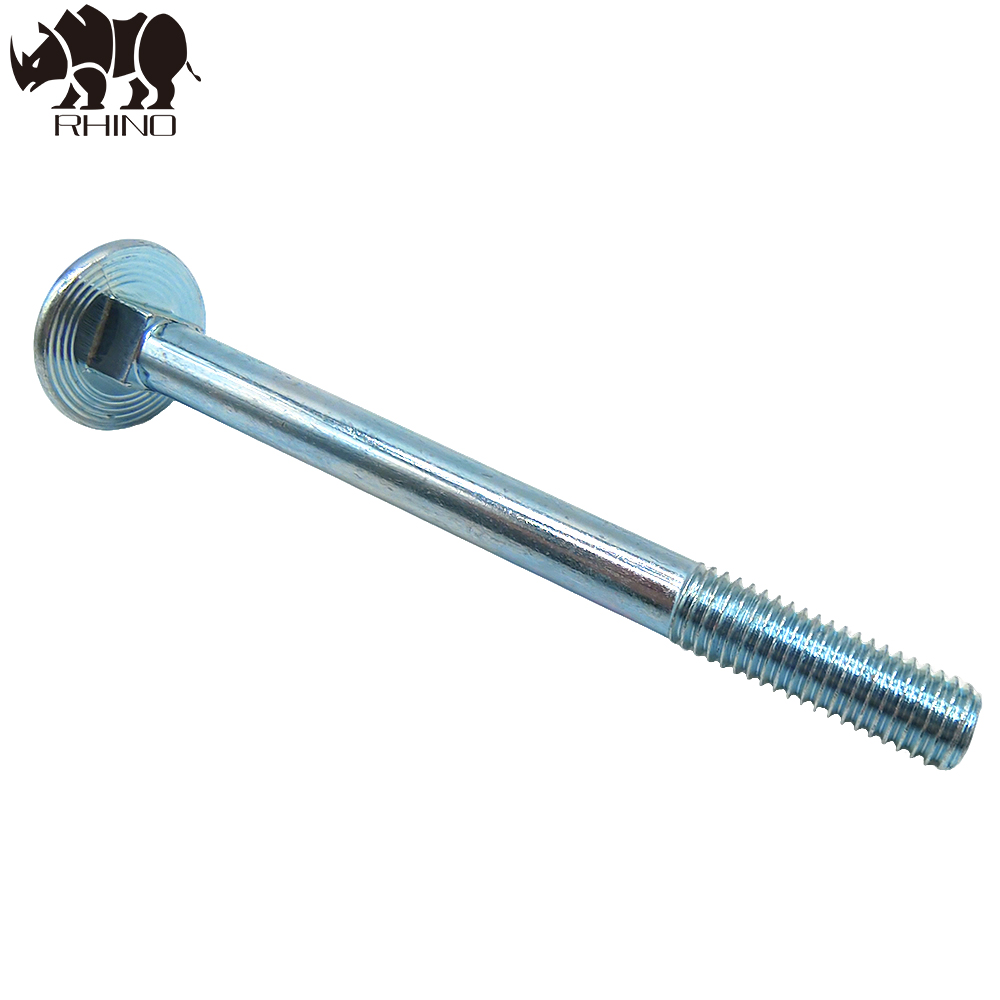

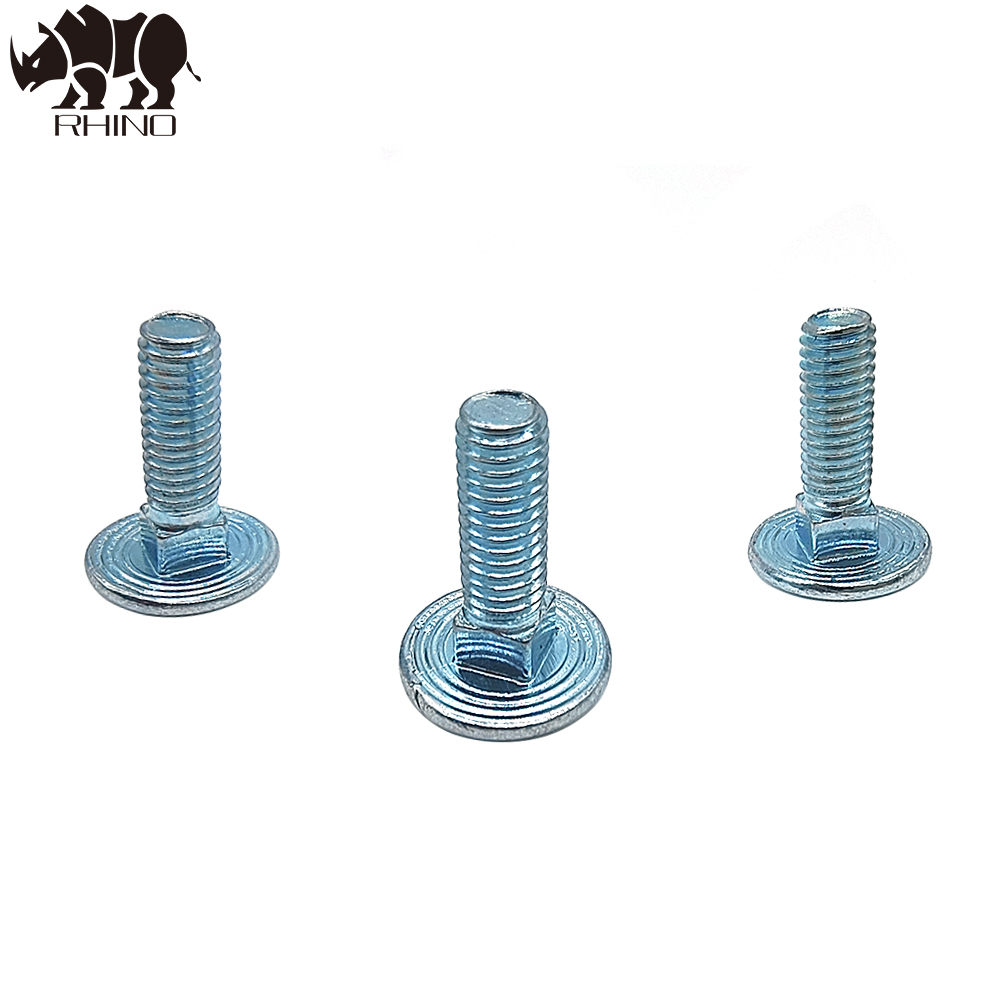

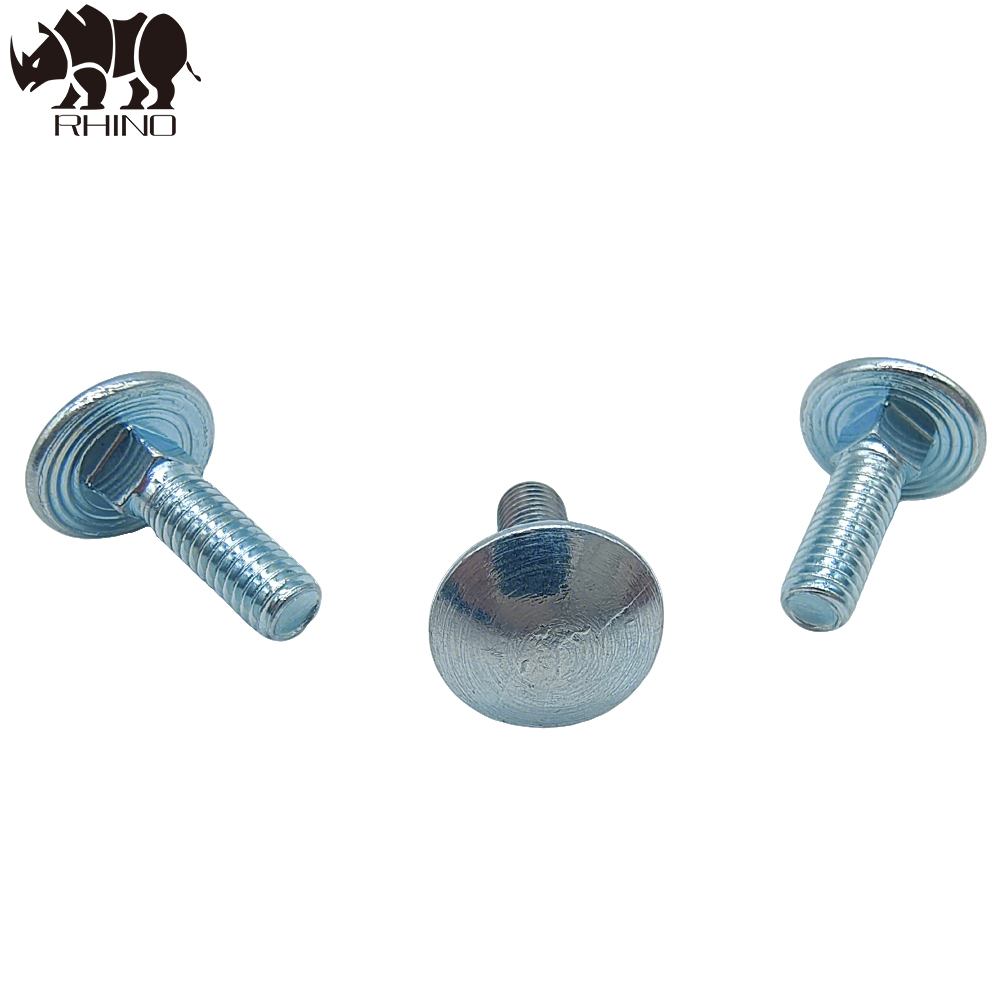

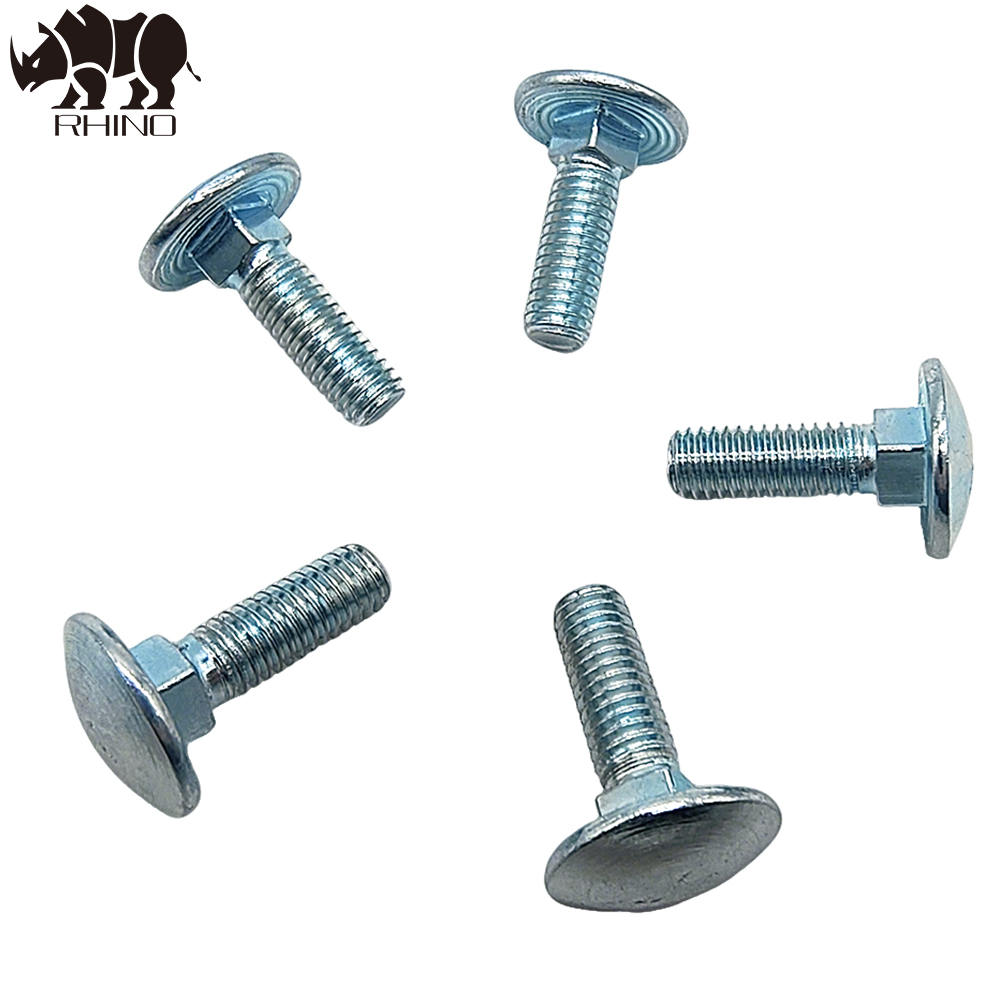

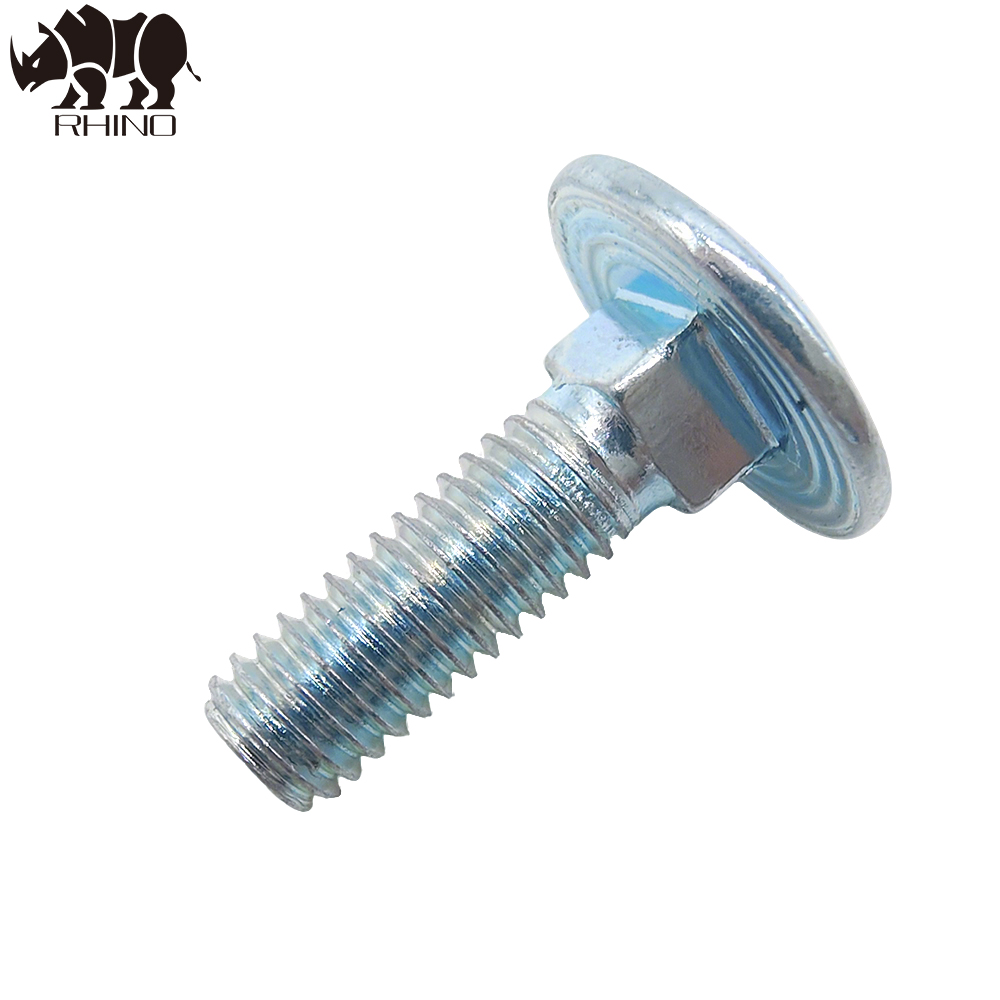

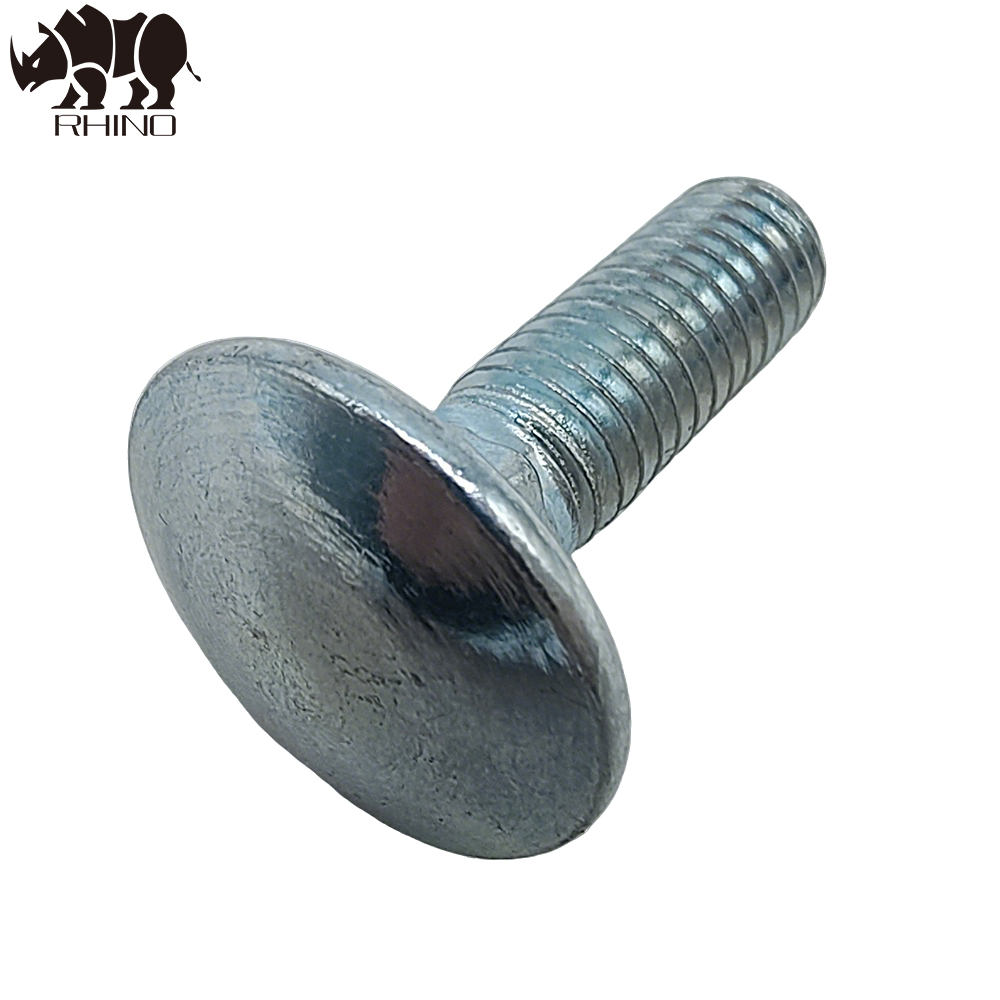

Round Mushroom Head Square Neck Carriage Bolts, also known as DIN603 bolts, are specialized fasteners designed for secure and durable connections. They feature a smooth, domed mushroom-shaped head and a square neck below the head. These bolts are commonly made from materials like stainless steel, ensuring resistance to corrosion and durability in various environments. Their design allows for easy installation into pre-drilled holes, often paired with washers and nuts for added security.
Product Data
Specification
d
M6
M8
M10
M12
Pitch
1.0
1.25
1.5
1.75
b
L≤125
18
22
26
30
125≤L≤200
/
28
32
36
dk
Max
15.10
19.1
24.30
29.3
Min
13.30
17.3
22.16
27.16
K1
Max
4.40
5.40
6.40
8.45
Min
3.60
4.60
6.60
7.55
k
Max
3.48
4.48
5.48
6.48
Min
2.70
3.60
4.60
5.60
S
Max
6.30
8.36
10.36
12.43
Min
5.84
7.80
9.80
11.76
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
