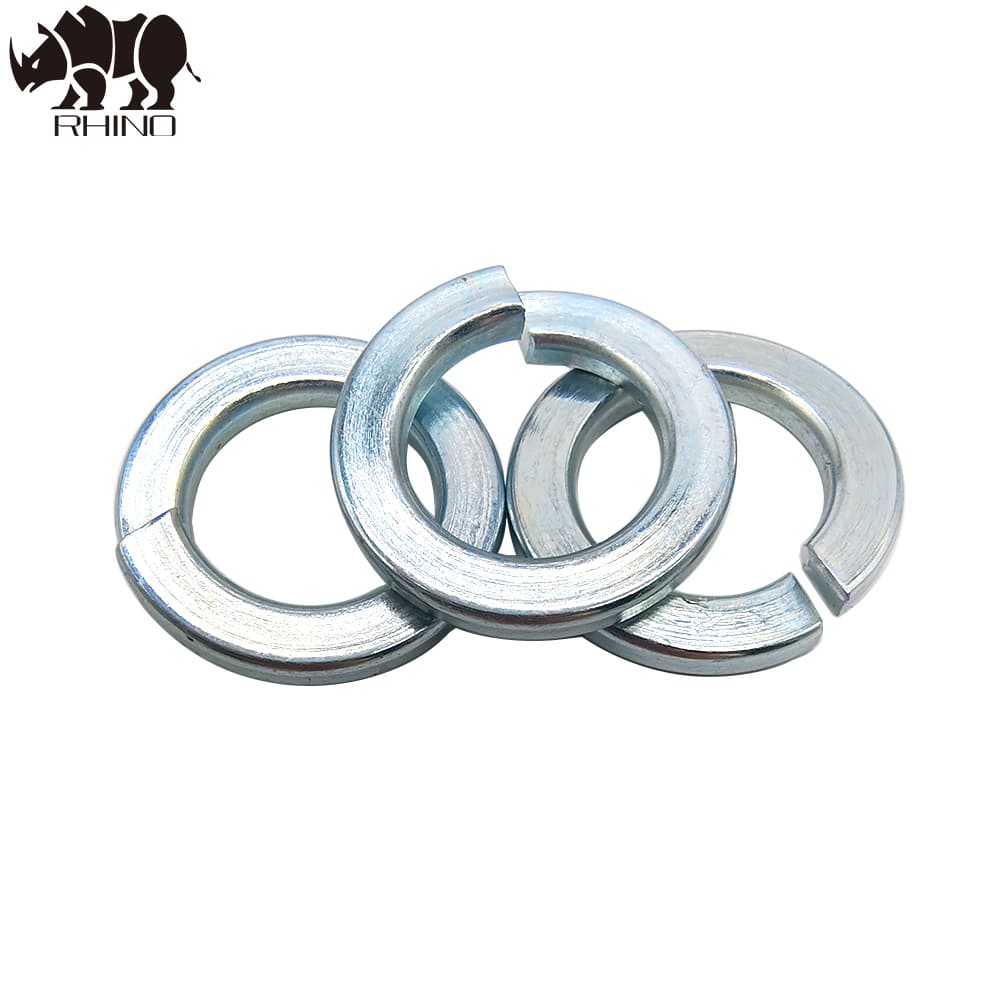

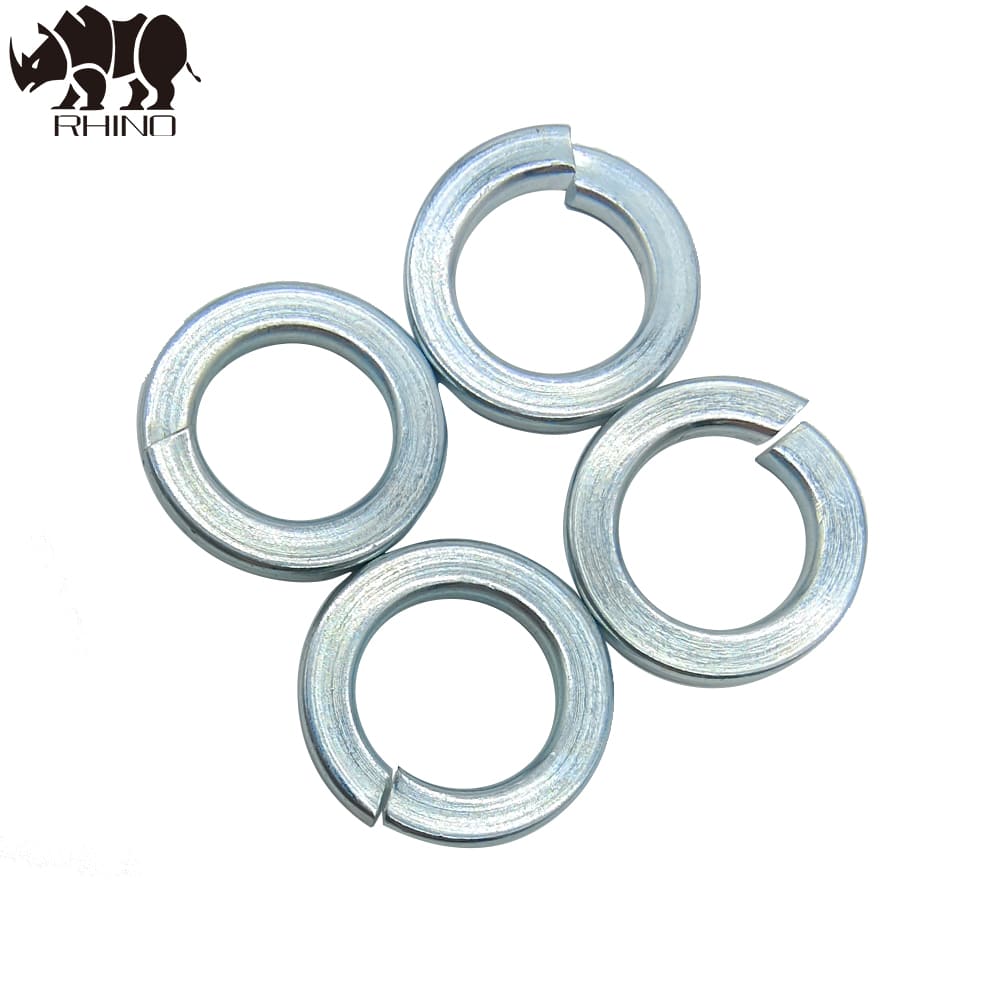

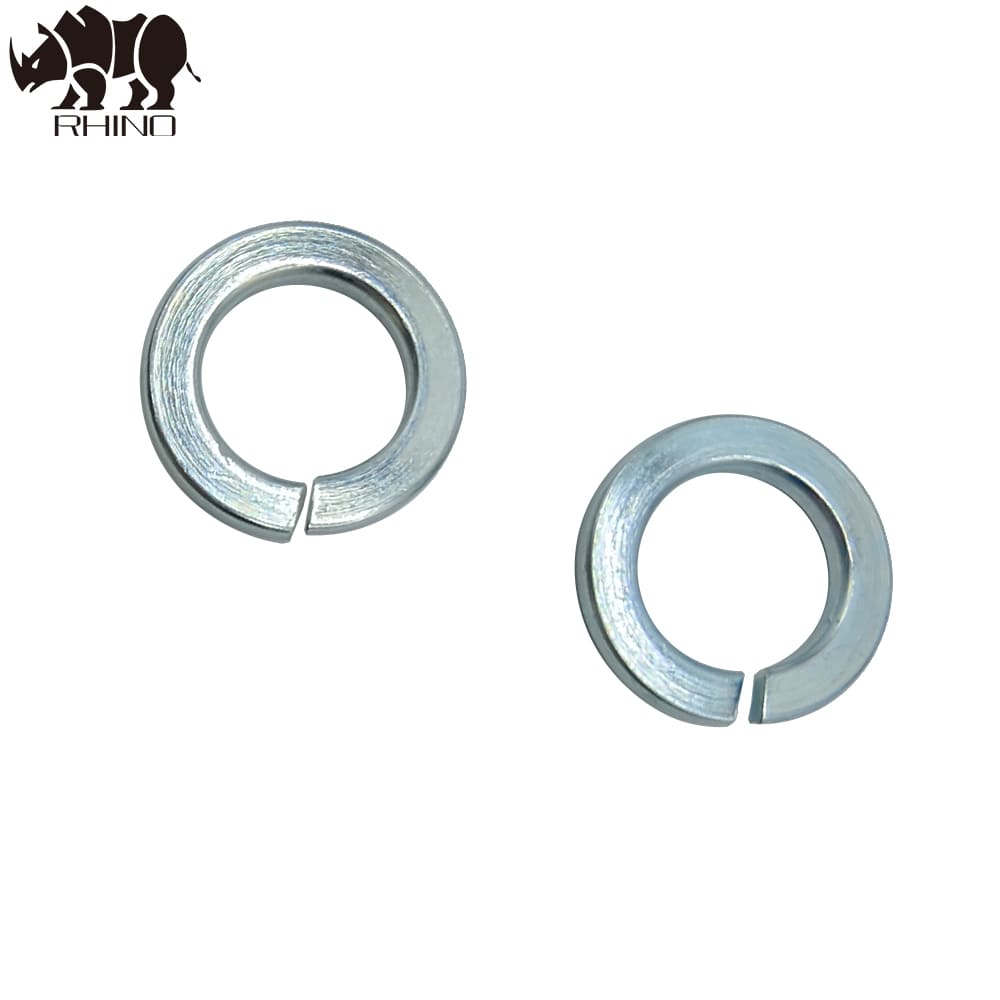

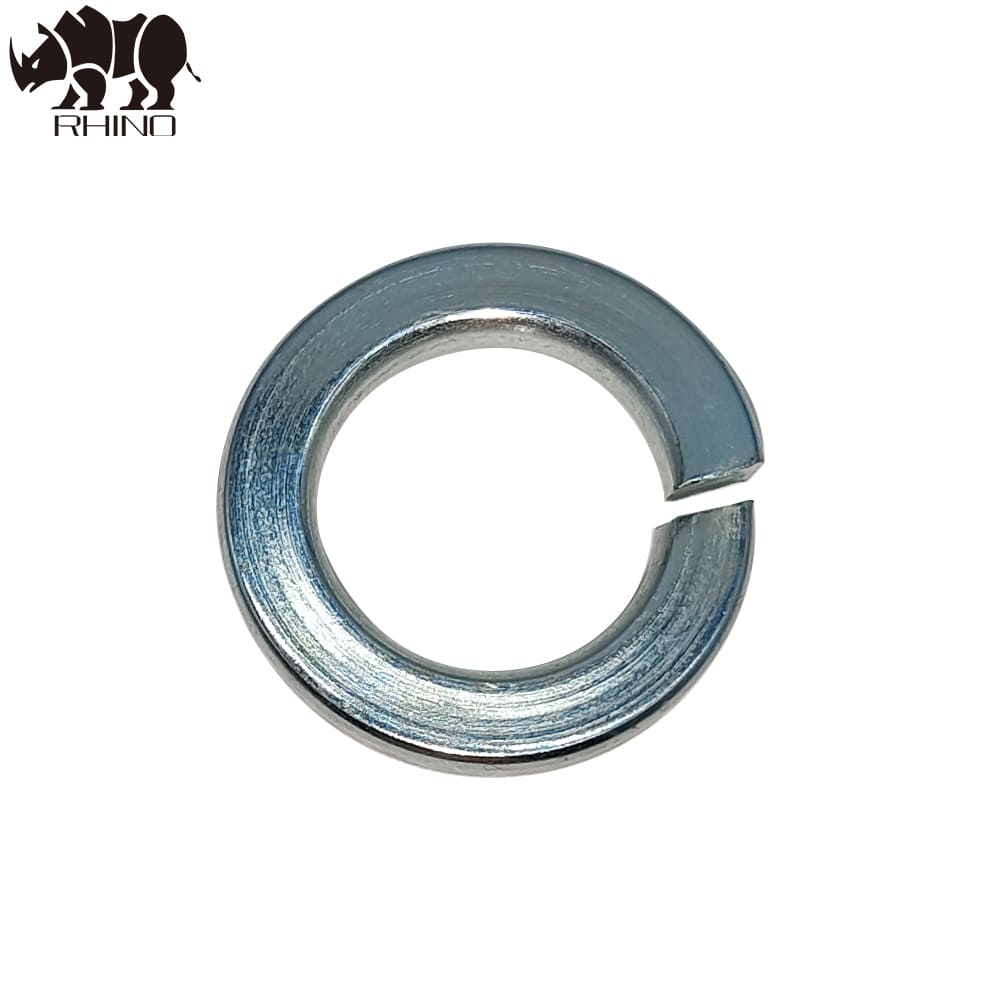

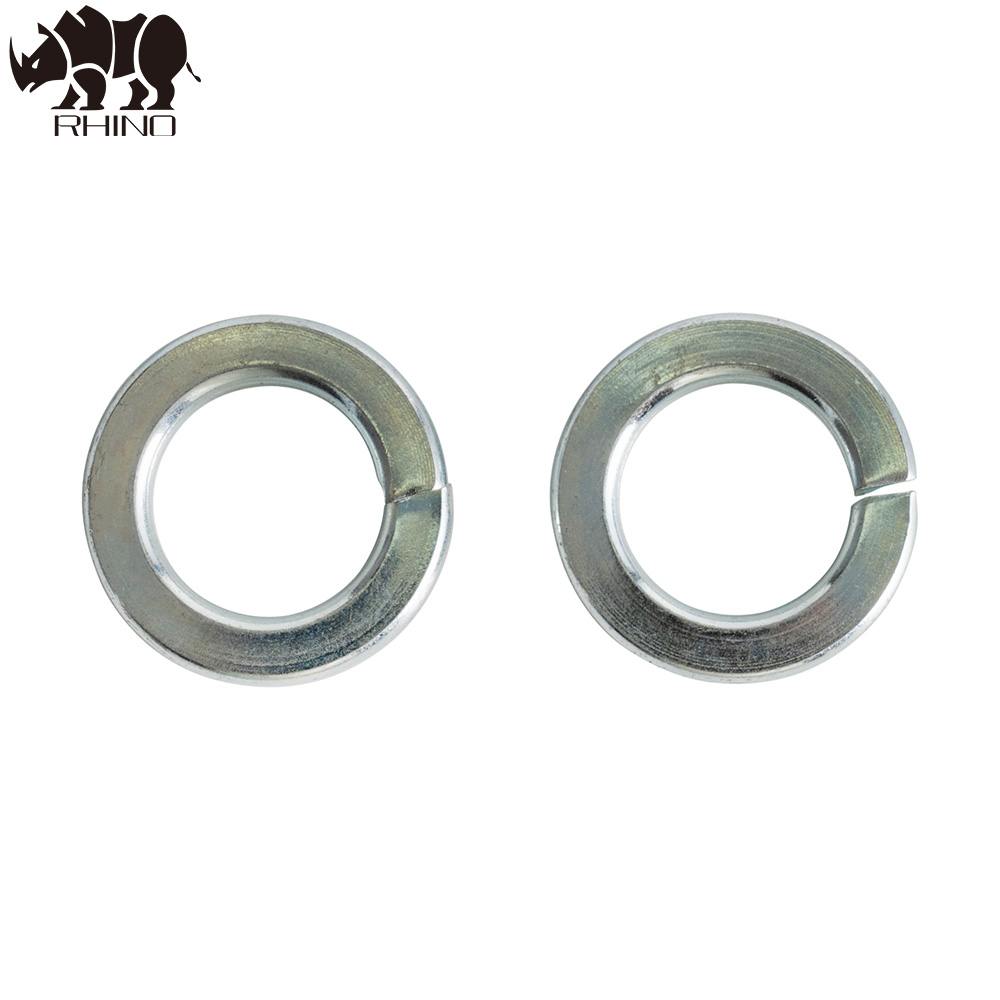

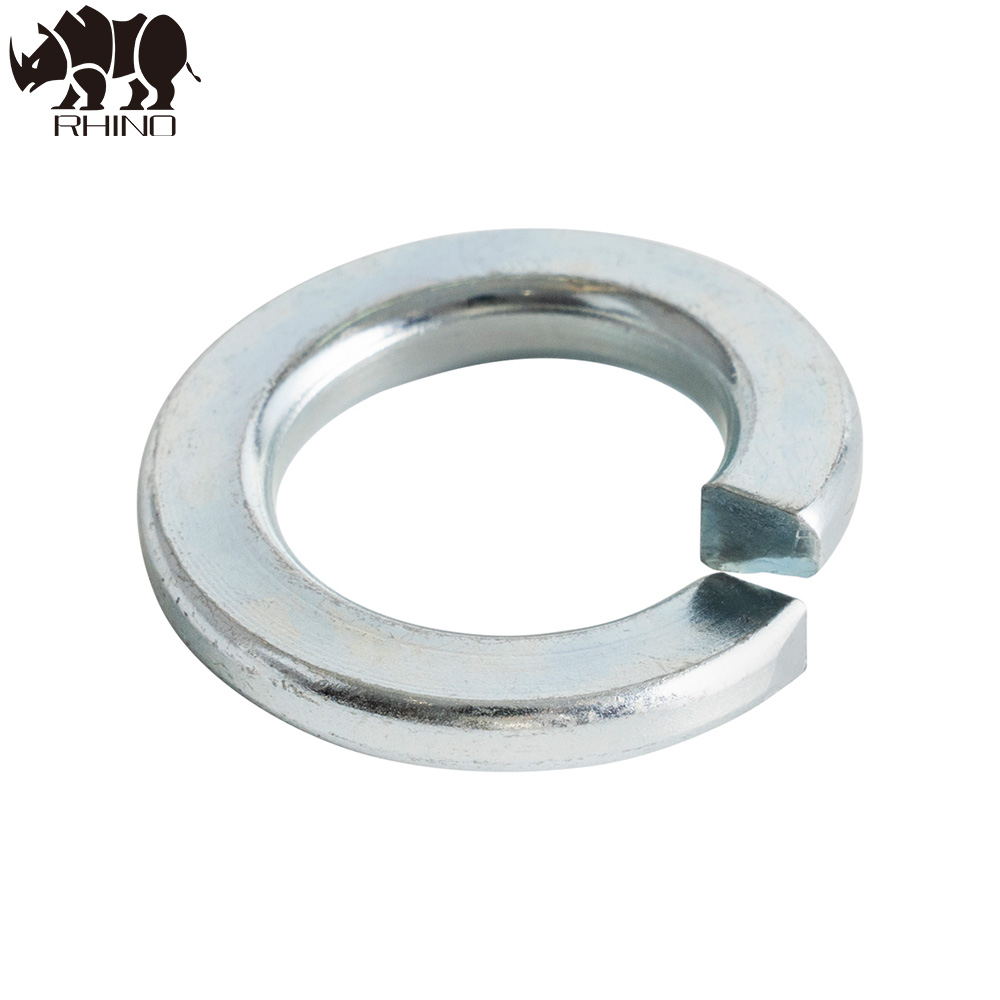

DIN 127B spring washers, also known as spring lock washers or split washers, serve a crucial purpose in preventing nuts and bolts from loosening due to vibrations or external forces. These irregularly shaped washers are compressed and can return to their pre-deformed shape when subjected to load. Typically made from high-quality steel, they exert a spring force between the fastener head and the substrate, ensuring secure connections in various applications.
Product Data

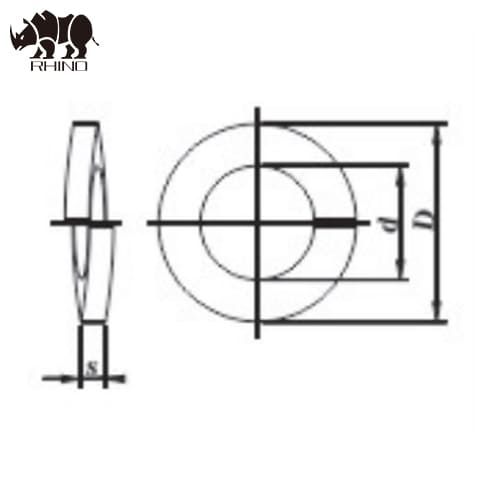

Size
d
D
s
M3
3.4
6.2
0.8
M4
4.4
7.6
0.9
M5
5.4
9.2
1.2
M6
6.5
11.8
1.6
M8
8.5
14.8
2.0
M10
10.7
18.1
2.2
M12
12.7
21.1
2.5
M14
14.7
24.1
3.0
M16
17
27.4
3.5
M18
19
29.4
3.5
M20
21.2
33.6
4.0
M22
23.5
35.9
4.0
M24
25.5
40
5.0
M27
28.5
43
5.0
M30
31.7
48.2
6.0
M36
37.7
58.2
6.0
M42
43.7
68.2
7.0
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
