Introduction

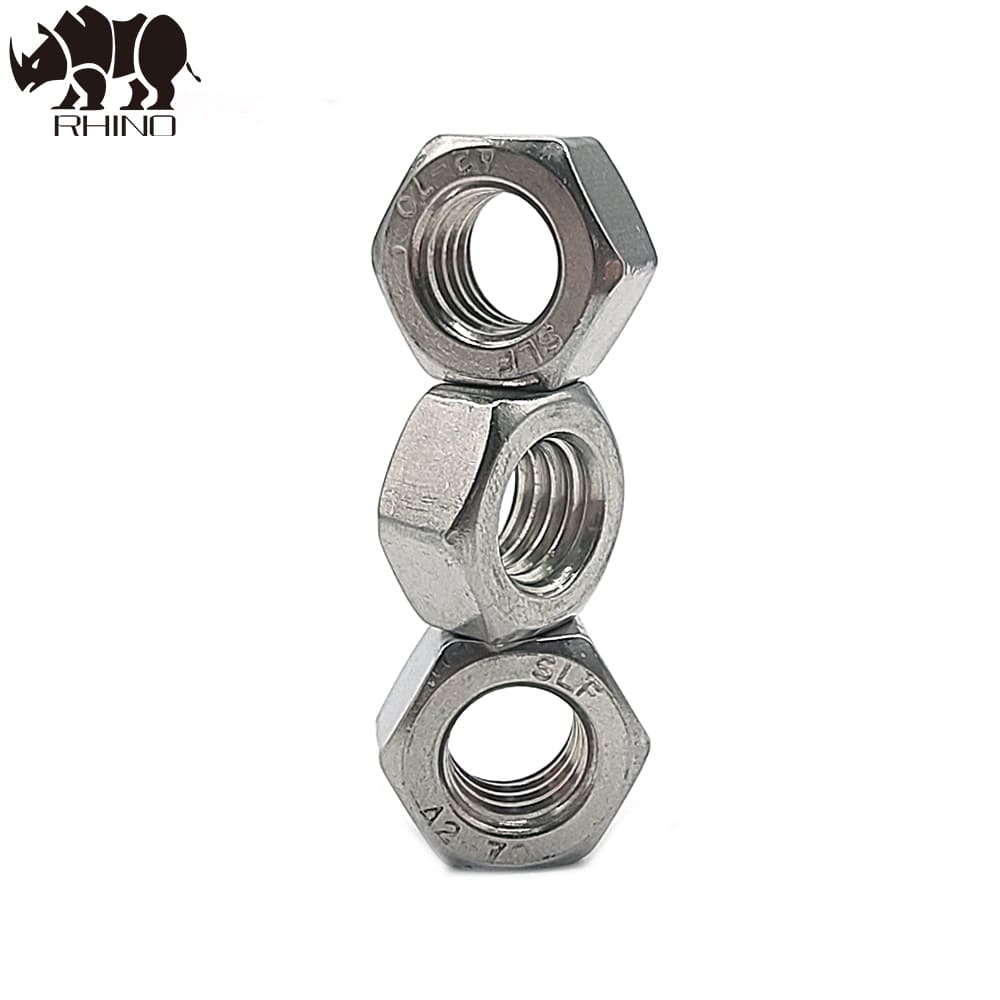

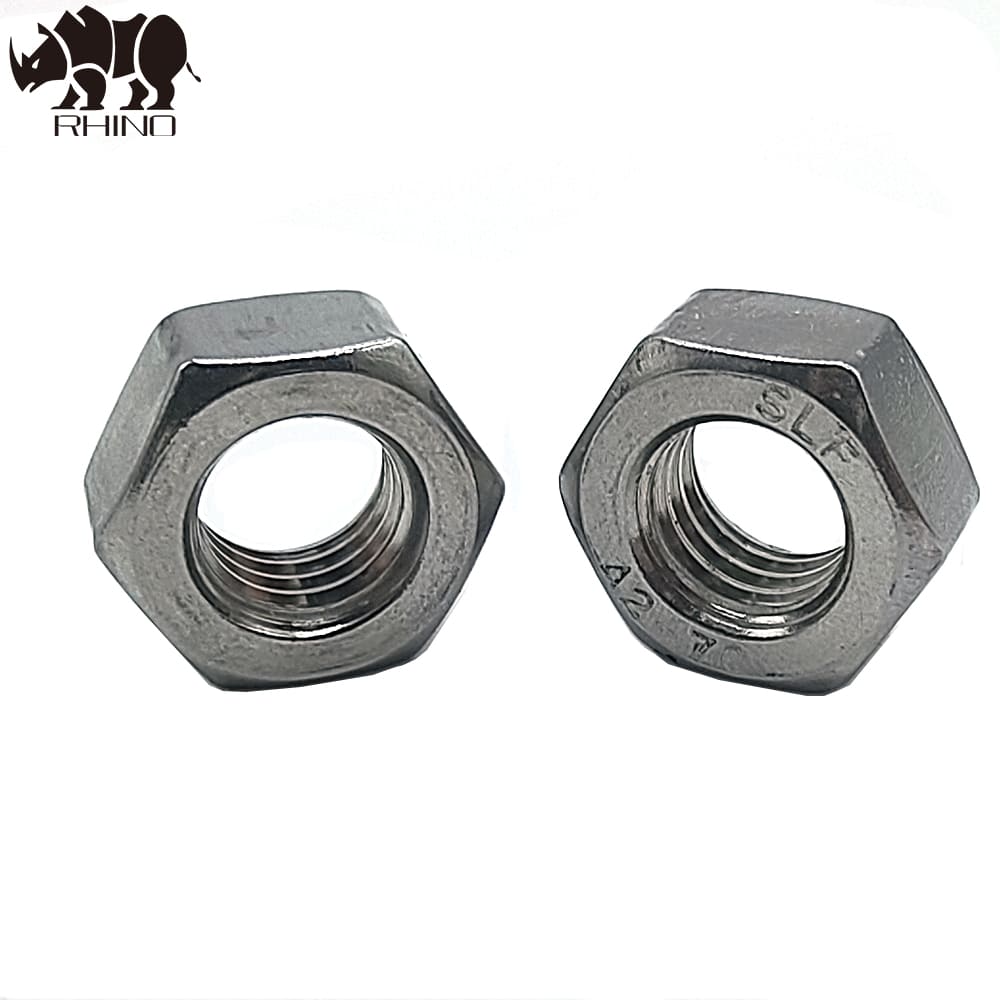

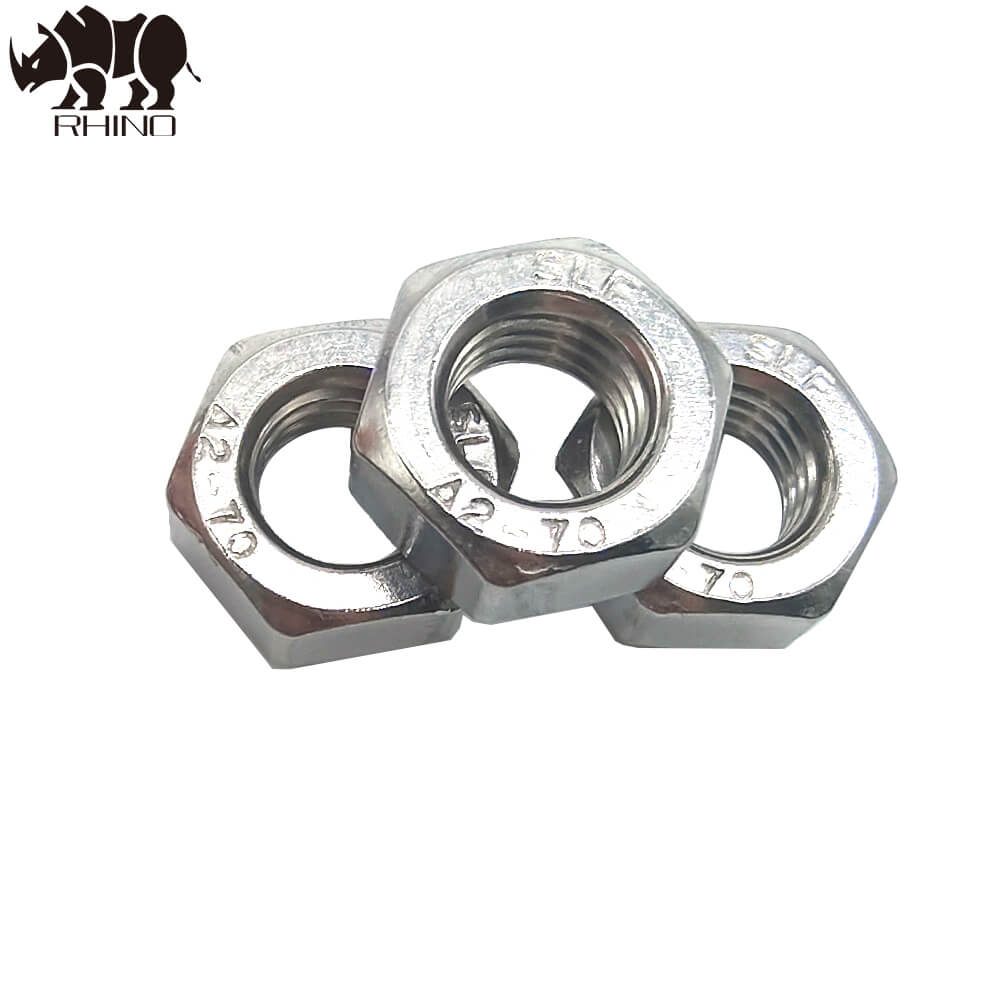

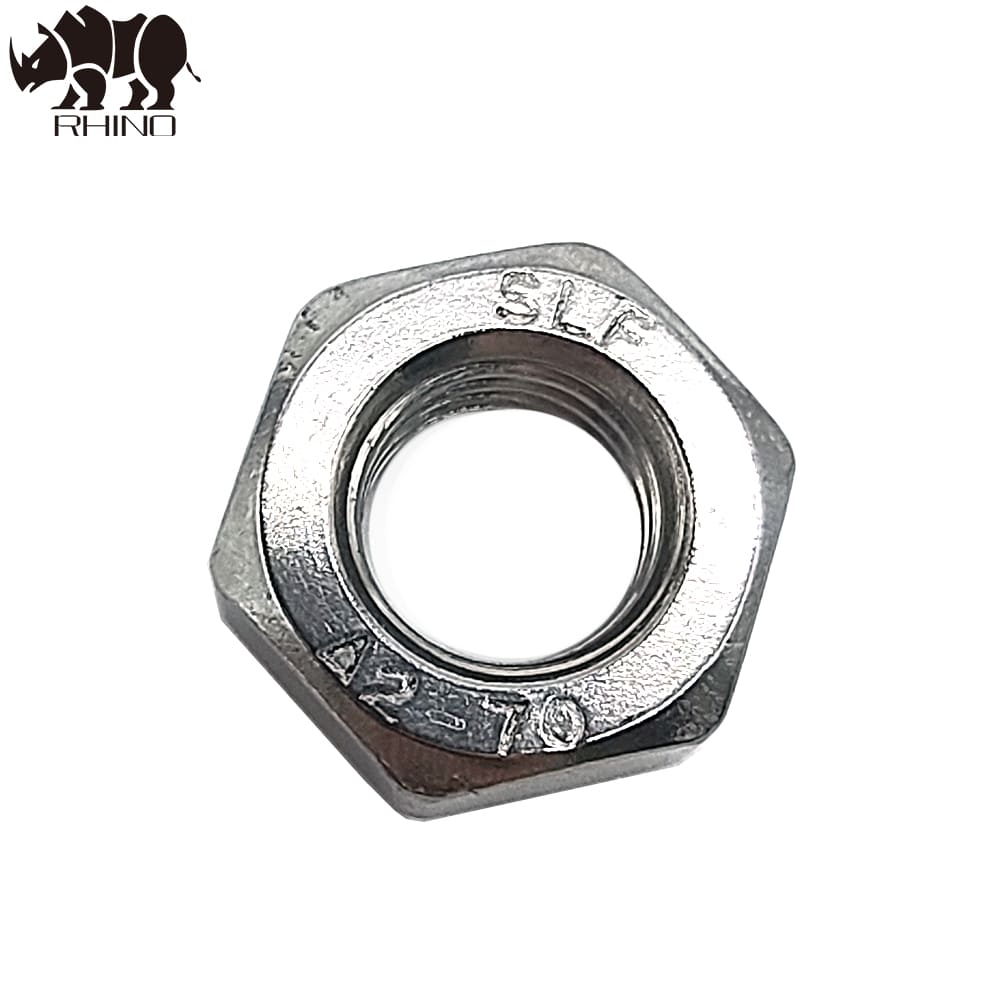

The Stainless Steel DIN 934 Hexagon Nut which made from corrosion-resistant stainless steel, is a standard fastener with six flat sides. It’s commonly used to secure bolts, screws, and threaded rods. You can choose the thread size by yourself.

Product Data

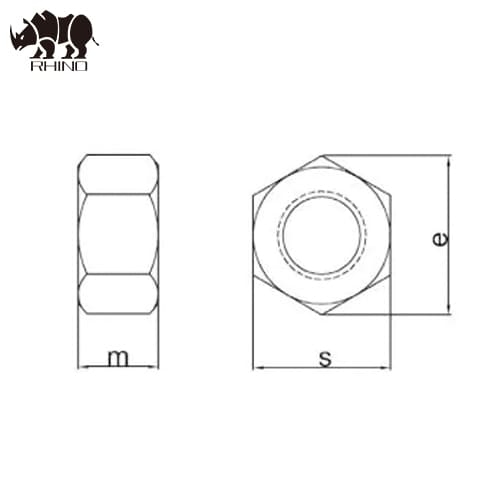

Size s e m
min max min min max
M2 3.82 4 4.32 1.35 1.6
M2.5 4.82 5 5.45 1.75 2
M3 5.32 5.5 6.01 2.15 2.4
M3.5 5.82 6 6.58 2.55 2.8
M4 6.78 7 7.66 2.9 3.2
M5 7.78 8 8.79 3.7 4
M6 9.78 10 11.05 4.7 5
M7 10.73 11 12.12 5.2 5.5
M8 12.73 13 14.38 6.14 6.5
M10 16.73 17 18.9 7.64 8
M12 18.67 19 21.1 9.64 10
M14 21.67 22 24.49 10.3 11
M16 23.67 24 26.75 12.3 13
M18 26.16 27 29.56 14.3 15
M20 19.16 30 32.95 14.9 16
M22 31 32 35.03 16.9 18
M24 35 36 39.55 17.7 19
M27 40 41 45.2 20.7 22
M30 45 46 50.85 22.7 24
M33 49 50 55.37 24.7 26
M36 53.8 55 60.79 27.4 29
M39 58.8 60 66.44 39.4 31

Applications

Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
